SMD IP65 Outdoor P5 Full Color Event Stage Backdrop Led Video Wall Display Screen Die Casting Aluminum Cabinet

Product Details:
Place of Origin: ShenZhen in China
Brand Name: Vios
Certification: CE/ROHS/FCC/ISO/CB
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month

Product description

Pixel Pitch: 5mm Pixel Density: 40000dots/㎡
LED Chip: Epistar,Nationstar Module Size: 3320*160mm
Cabinet Size: 640*640mm Waterproof: IP65
Cabinet Material: Die- Catsing Aluminum / Iron Driving Mode: 1/16 Scan
Warranty: 3~5 Years
High Light: full color led signs outdoor, outdoor full color led screen

Outdoor Waterproof P5 Stage Events LED Video Wall Rntal Screen with 3~5 Years Warranty

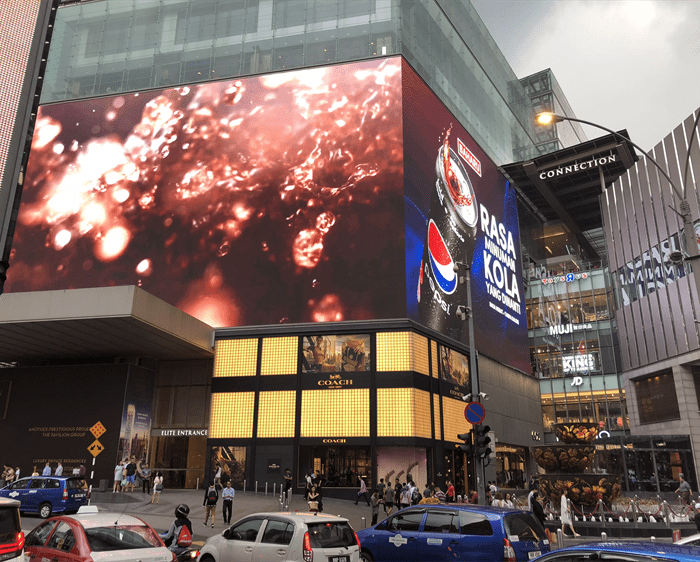

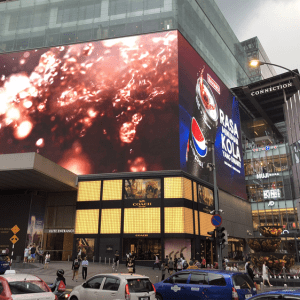

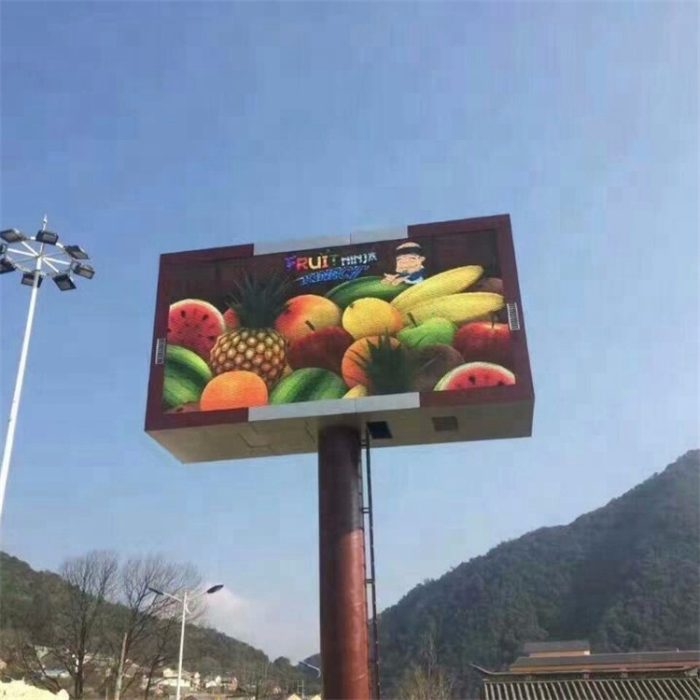

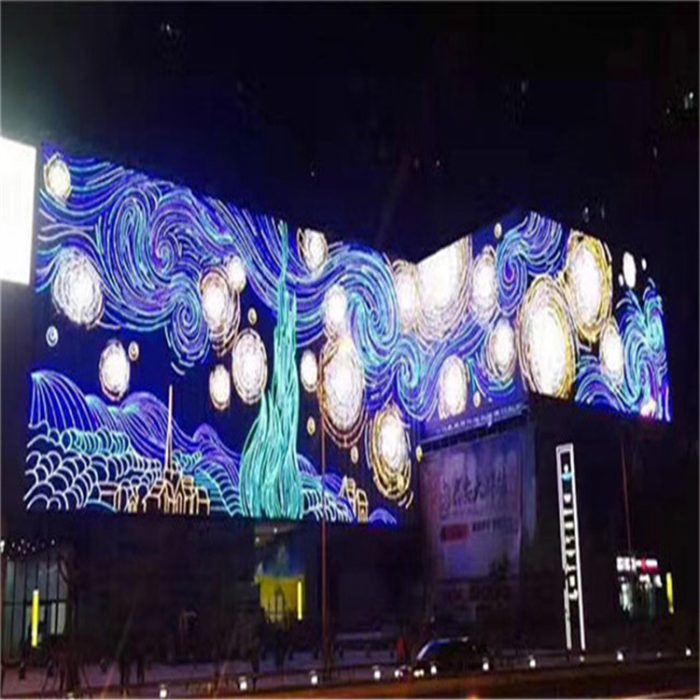

P5 Rental LED Screen Application



Certainly the best option for outdoor advertising, this rental LED display carries some features that make it highly suitable for outdoor areas. It can work in different brightness level and outdoor circumstances. Rental led display can also be used at stage, bank, promotion, exhibition, station, KTV, stadium, airport and other outdoor places.



P5 Rental LED Screen High Gray Scale – Better Picture



Our LED Display Screen is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.



P5 Rental LED Screen Wide Viewing Angle for Broader Reach



The display features a wide viewing angle of 120° horizontal and 120° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.



P5 Rental LED Screen Strict Aging Test



All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.



P5 Rental LED Screen Technical Parameters



Pitch size
5mm
Module size
320mm*160mm
Panel pixel(dots)
64*32
Pixel configuration
1Red,1Green,1Blue
Color scale
256-65536grade/16777216colors
Pixel density
40000 pixels/square meter
View angle(H/V)
160/120 degree
Brightness
≥6500cd/square meter
View distance
5-150m
Power consumption
100-1200W/square meter
Net weight
8kg/pcs
Operating temperature
—25°C~+60°C
Operating humidity
10%—95%RH
Life time
≥100,000hours
Exchange frame speed
>150frames per second
Refresh frame frequency
1920-3840Hz
Control distance
100m (without relay),single mode fiber:
20000m,multi mode fiber:500m-20km
Power
110V/220V/380V±15% 50Hz
operating system
Windows98/Me/2000/Xp
Drive mode
constant current driving
display mode
VGA640X480—VGA1600X1024
Protections for outdoor display
IP65
Accepting signal
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI





20200910181806_42244

Installation Procedure

20200910185308_88814





Packing&Shipping



Packing: Wooden& Flight case are available

Shipping: By Air, Sea, DHL, UPS, EMS

20200910182146_11183

FAQ

Q1: What`s your payment term? How long it takes to delivery?

A: We accept T/T and L/C, For both T/T and L/C,Our average Production time is 16 days, after receiving the deposit.

Q2. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q3: What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question . We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts. Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q4: What’s the control system?
A: We use Linsn, Nova ,Carlette control system.

Q5: What’s the warranty of your LED Display Screen ?
A: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q6. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
