Module Size::
160*320mm
Warranty::
5 Years
Product Name::
P10 Outdoor LED Display Screen LED Full Color High
Brightness::
6500cd/sqm
LED Chip::
Epistar
Life Span::
100000hours
Application:
Outdoor Advertising Led
Name::
P10 Outdoor Led Screen
Certificate::
CE RoHS FCC EMC Lvd Certifications
Refresh Rate::
1920Hz-3840Hz
High Light:
perimeter led display, perimeter led screen
Vios LED Outdoor standing two poles fixed led display p10 SMD 3535 1/4 scan programmable led sign
High Brightness with Low Luminous Decay
Adopted high quality LED to make sure the brightness always in a high level, FO series can produce crystal clear images in virtually any lighting conditions, even in the sun directly.
♦ Product specification
outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32*16
Module size/mm 320*160
View distance 9-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3500Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <350W
Self-check technology LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

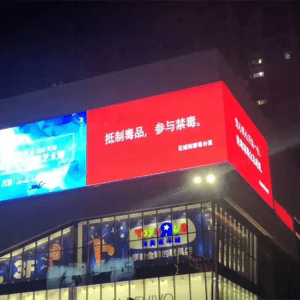

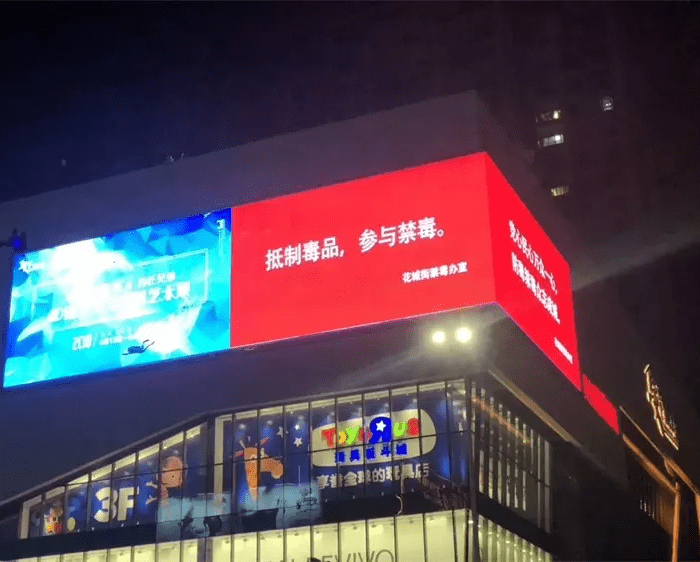

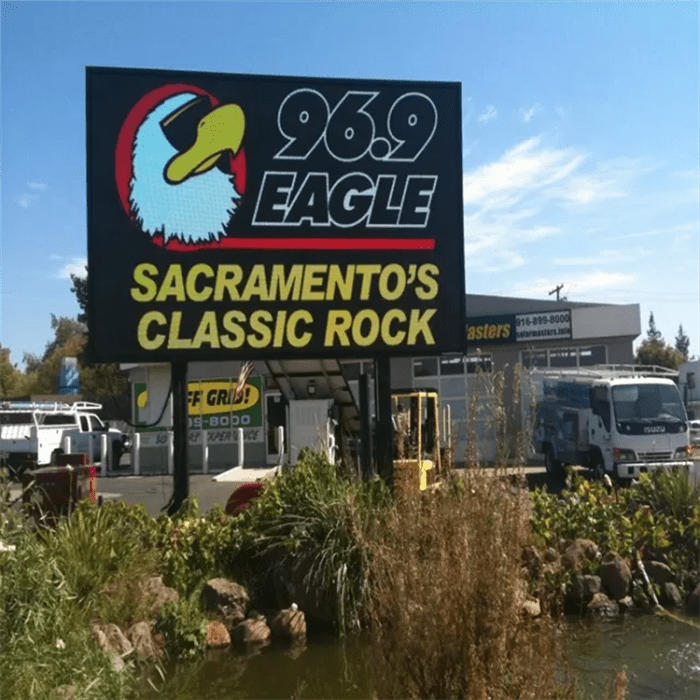

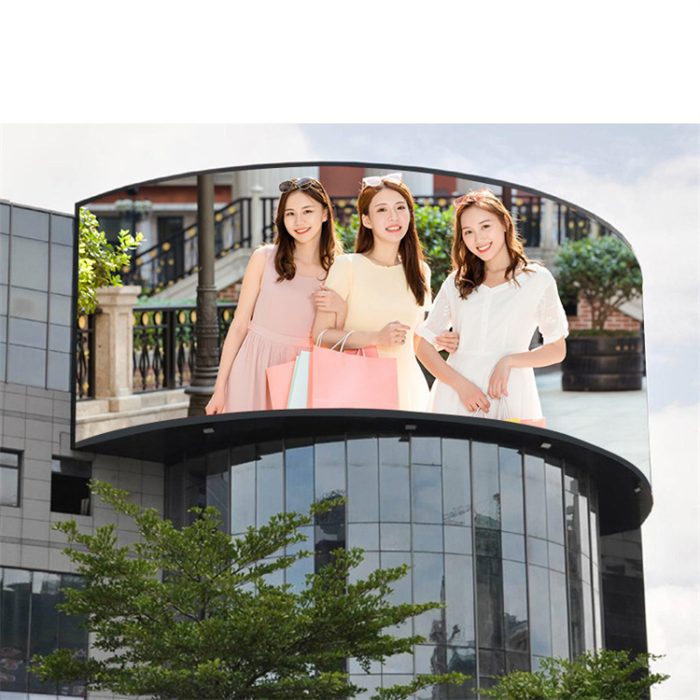

Our case
Our company
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Our services
1.Providing professional technology supporting
2.Instructing installation and remote control
3.Trainning workers for free
4.Providing free procurement services
5.Customer first is our service tenet
FAQ
Q1. For sample Orders : Welcome to release order to test and check .Both for modules and screens
Q2. For leading time: MOQ less than 100 square meter take 15 working days
Q3. MOQ: one Square meter or one pcs led module is available
Q4: Quotation and Drawing : Free quotation and Free drawing
Q4: Special design :Design special size and different function,Supply OEM service
Q5: Installation and Training team:Offer online ,remote control ,and Site instruction
Q6: Warranty: Products with 3-5 Years warranty
