Vios Outdoor P6 192mm*192mm led module with large PCB board and heat resistant IC rgb led display module

Product Details:

Place of Origin:
China
Brand Name:
Vios
Certification:
CE/ROHS/FCC/SGS
Model Number:
P6

    Payment & Shipping Terms:

    Minimum Order Quantity:
    negotiation
    Price:
    negotiation
    Packaging Details:
    Packed in wooden case and flight case for outer packing
    Delivery Time:
    10 working days after received your payment
    Payment Terms:
    T/T or western Union
    Supply Ability:
    5,000/ Sq m per month



    Detailed Product Description
    Product Name:
    Outdoor P6 Module
    Module Size(W * H):
    192mm*192mm
    Standard:
    CE/ROHS/FCC/ISO9001
    Tube Chip Color:
    Full Color
    Pixel Pitch:
    6mm
    Module Qty:
    1pcs
    Type:
    Free Standing
    Resolution(W*H):
    32dots*32dots
    High Light:
    led screen module
    , led sign module
    outdoor P6 192mm*192mm led module with large PCB board and heat resistant IC rgb led display module
    outdoor p6 module feature:
    1.Firm and high safety ratio of Ox horn socket,convenient to take or carry.
    2.Large PCB board emerges heavy current,wide circuit and high brightness and avoids Mosaic phenomenon so that can make sure display work smoothly,environment protecting.
    3.Platoon fan makes normal air convection,easy to work,save too much power cost for customer and extends screen lifetime
    4.Large module leads less space and better evenness makes display good image.
    5.A class of lamp bead has better gloss and high pure degree makes out high clear image.save energy.
    6.Stainless steel of screw makes IC and current operate smoothly.
    7.Heat resistance 90°IC not easy to be harmed makes display longer lifetime.
    Shenzhen Vios Electronic Technoloy Co., Ltd  has been devoting to high-quality LED display designing & manufacturing for over 21 years.
    Fully equipped with professional team and modern facilities to manufacture fine LED display products, Vios  make products that have found wide application in airports, stations,ports,gymnasiums, banks, schools, churches ,etc.our LED products are deployed across 100 countries all over world,covering Asia, Middle East, America, Europe and Africa.
    From stadium to TV station, to conference & events,VIOS  provides a wide range of eye-catching and energy efficient LED screen solutions to industrial, commercial and governmental markets worldwide.

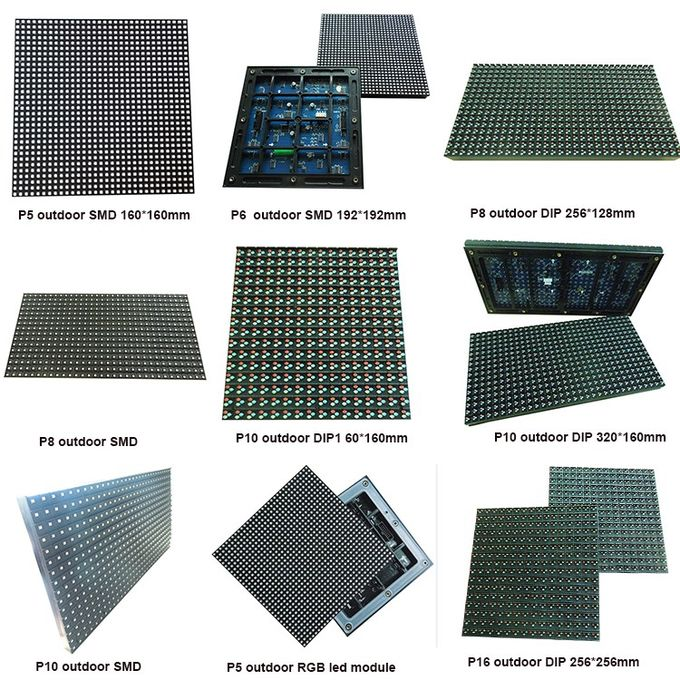

    outdoor P6 192mm*192mm led module with large PCB board and heat resistant IC rgb led display module 0
    The detailed parameter as follows.

    1, Item Name
    waterproof P6 SMD 1R1G1B LED Display Module size 192*192mm 1/8 scanning
    2, pixel tube:
    pixel pitch:6mm; primary colors: pure red+pure green+pure blue ,
    color composing: 1R1G1B
    Density:27778dots/sq m; smd3535
    3 , unit box
    module size:192mm*192mm; Module resolution:32X32
    cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;
    4, whole screen:
    the optimum viewing angel :horizontal 110°, vertical 50°
    viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC MBI5124
    5, operating voltage
    AC220V±10% or 110V±10% ,average consumption:500 W/sq m
    max consumption:≤650 W/ sq m
    6, main parameter
    1) driving mode: 1/8 scanning
    2) refreshing rate:≥400Hz/s
    3) frame frequency:≥60Hz/s
    4) gray scale/color:≥16.7Mcolors(Synchronized)
    5) manage gray:≥72bit
    6) brightness:≥7000cd/sq m
    7) color temperature condition:3500K~9500K,be adjustable
    8) adjusting style of brightness: hand movement/auto
    9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
    10) average trouble-free time:≥5000hours
    11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
    12) switch power loading:5V/40A
    13) display mode of computer:1024×768



    outdoor P6 192mm*192mm led module with large PCB board and heat resistant IC rgb led display module 1

    Methods for Quality Assurance

    a. Aging testing :100% fully test Condition: 72 hours with 256 gray level
    b. Vibration Testing:Condition: 3-5 min up and down in 5mm range

    Advantage

    1. OEM service,No MOQ
    2. Easy installation,regular items in Stocks
    3. Offering free design drawing as requested.
    4. Remote controlling and adjusting are available.
    5. Wooden case or flight case,you are the boss.
    6. Your reply will be replied within 24 hours.
    7. Fast delivery: Usually 6-8 working days
    8. Excellent R&D team,factory Price and assure you quality goods.
