HD Indoor / Outdoor LED Curtain Display , LED Curtain Video Wall For Centure Place

HD Indoor / Outdoor LED Curtain Display , LED Curtain Video Wall For Centure Place

Product Details:
Place of Origin: China ,Guang Dong
Brand Name: Vios
Certification: CE RoHS FCC CCC TUV UL
Model Number: Vios P20
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meters
Price: USD 400-750 square meters
Packaging Details: wooden box flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after deposit payment received
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sqm per month

Product Detail

The Outdoor Flexible Curtain LED Screen from Leyarled is a 512×512 mm outdoor LED display for facade media and entrance signage, built around a P5 screen that resolves 10,404 pixels per cabinet. Cabinets are sealed to IP65, run 6,500 cd/m² with 1920-3840 Hz refresh, and ship with the layout drawing, control configuration and spare modules already matched to the order.

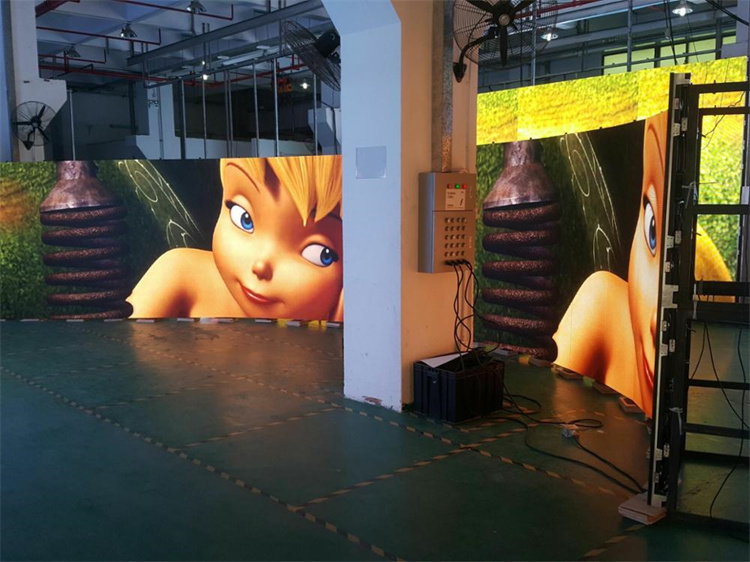

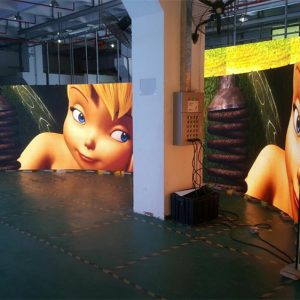

Outdoor Flexible Curtain LED Screen 512x512mm outdoor LED display - Leyarled

Outdoor Flexible Curtain LED Screen: key features

  • About 8.7 kg per cabinet, 273 W/m² average draw – power and structure can be sized from these two numbers before the layout is final.
  • Kinglight LEDs on a die-cast aluminium cabinet – the lamp and cabinet pairing is what decides colour consistency after three years.
  • Factory calibration before packing – brightness and colour bins are matched across cabinets so a 40 m² wall reads as one surface.
  • 10,404 pixels per cabinet (P5, 512×512 mm) – a 4×3 wall lands at 408×306 (0.12 MP) without any custom cutting.

Outdoor Flexible Curtain LED Screen technical specification

Parameter Value
Pixel pitch P5 (5 mm)
Module size 256×128 mm
Module count 8 per cabinet
Cabinet size 512×512 mm
Resolution per cabinet 102×102 px (10,404)
Brightness 6,500 cd/m² (auto dimming)
Refresh rate 1920-3840 Hz
Scan mode constant current, high scan
Protection IP65
LED lamp Kinglight
Cabinet material die-cast aluminium
Cabinet weight about 8.7 kg (33 kg/m²)
Average power about 273 W/m²
Viewing distance 7.5 m minimum, 15 m comfortable
Lifespan 100,000 hours
Warranty 3 years

The table shows the standard build for this Outdoor Flexible Curtain LED Screen. Cabinet size, brightness and control system can be changed per project; the final datasheet is issued with the PI before production. Cabinets are tested against IEC 60068 for temperature, humidity and vibration.

How the numbers work on a real wall

The arithmetic behind this Outdoor Flexible Curtain LED Screen is simple enough to check before you order: 512÷5 = 102 pixels across each cabinet and 512÷5 = 102 down, so six cabinets in a row resolve 612 pixels at 3.07 m wide. Viewing distance follows the pitch – 7.5 m before the pixel structure disappears, 15 m before body copy reads cleanly. Because the cabinet divides into 8 standard 256×128 mm modules, a replacement module is never a custom order.

Product details

Since it was founded in 2009, our company has been committed to the production and development of SMD LED display screen, today, our company with rich experience and stable quality in the field of SMD screen has won many customers!

Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!

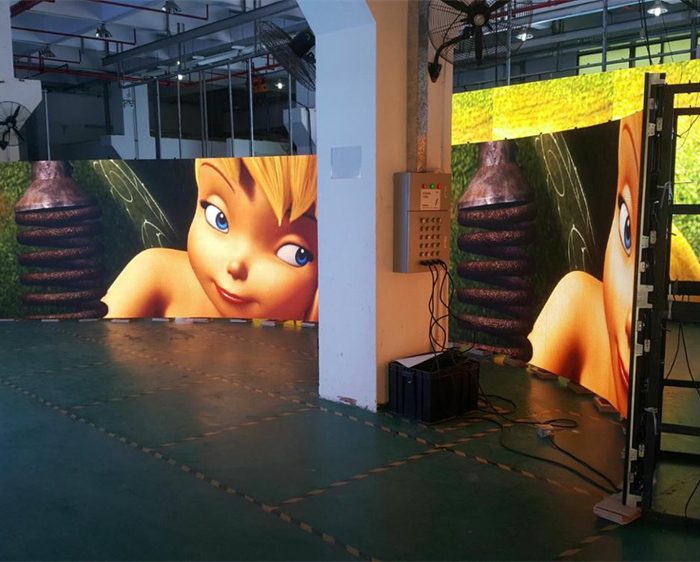

Outdoor Flexible Curtain LED Screen 512x512mm outdoor LED display - Leyarled

Where the Outdoor Flexible Curtain LED Screen is used

  • Car parks and petrol stations – high-brightness panels with automatic dimming.

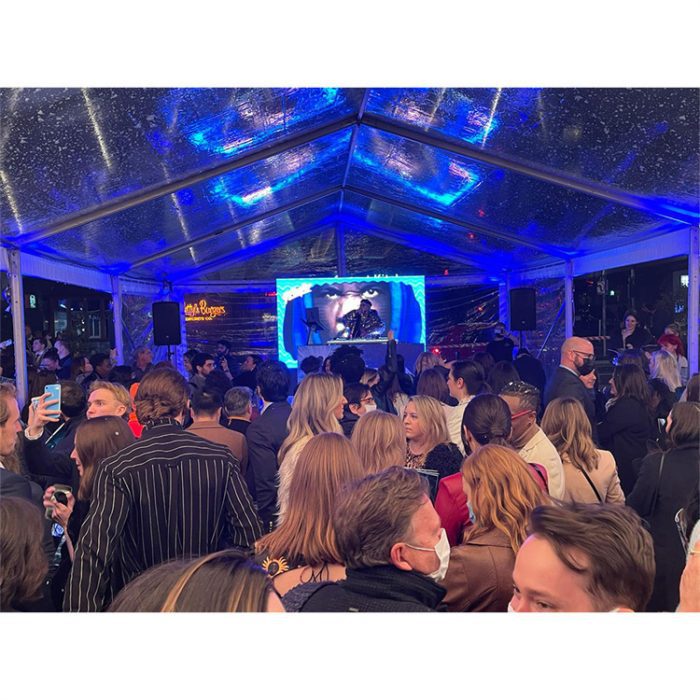

  • Sport and event venues – score and sponsor boards.
  • Building facades – permanent media walls on commercial buildings.
  • Entrances and plazas – welcoming screens that run brand and wayfinding content.

Installation and service access

Outdoor cabinets are sealed to IP65 with a breathable membrane valve, so pressure changes do not pull moist air inside. The rear door, fan filter and cable glands are the three service points that need access, and all three are reachable from the maintenance walkway.

For coastal sites we apply an anti-corrosion coating to the cabinet and use stainless fixings. 3-year warranty on modules, power supplies and receiving cards; spare parts held in Shenzhen for five years after the order.

Outdoor Flexible Curtain LED Screen: frequently asked questions

What is the lead time for a Outdoor Flexible Curtain LED Screen order?

7-12 working days for standard P5 cabinets, 15-20 days if the order includes steel structure and on-site commissioning. Sea freight to most ports adds 18-35 days depending on the route.

How many spare modules should I keep?

Budget 2-3% of modules plus one power supply per 20 cabinets. A spare module is a five-minute swap, so the stock is insurance against downtime, not a repair plan.

Can you build this Outdoor Flexible Curtain LED Screen in a custom size?

Yes. Send the wall width, height and viewing distance and our engineer returns a cabinet layout, a resolution map and a power estimate within 24 hours. Non-standard sizes are cut from the same cabinet family, so spares stay interchangeable.

Do you supply the steel structure and drawings?

The drawing pack covers anchor spacing, a 27 kg load case for a 2.05×1.54 m wall and the wind pressure for your region. A local fabricator builds to it, and we check the shop drawing before cutting starts.

Request a price for the Outdoor Flexible Curtain LED Screen

Send the screen size, viewing distance and project country, and our engineers return a layout drawing, a resolution map and a factory price within 24 hours. Similar models are listed under GOB LED Display range, and you can compare p4.81 indoor flexible curtain led screen, p10 outdoor smd led screen. Direct contact goes through the contact page. When you compare quotations, ask every supplier for the module brand, the power-supply brand and the spare ratio in the carton – that is where prices usually differ.
