Leyarled builds this P5 Indoor Rental LED Screen in Shenzhen on a 640×480 mm steel cabinet cabinet: P5 Kinglight LEDs, 12,288 pixels per panel, 1,000 cd/m² and IP40. It is the configuration most indoor commercial buyers settle on when they need reception walls, retail and wayfinding to run daily without a local engineer.
P5 Indoor Rental LED Screen: key features
- NovaStar and ColorLight compatible control – the control path stays one card, one processor, one content source.
- IP40 sealed cabinet with pressure valve – the breathable valve equalises pressure so gaskets are not stressed.
- 1,000 cd/m² with automatic brightness control – the sensor trims output after dusk instead of running flat out.
- 6 modules per cabinet, 320×160 mm each – module size is standard, so replacements are never a custom order.
P5 Indoor Rental LED Screen technical specification
| Parameter | Value |
|---|---|
| Pixel pitch | P5 (5 mm) |
| Module size | 320×160 mm |
| Module count | 6 per cabinet |
| Cabinet size | 640×480 mm |
| Resolution per cabinet | 128×96 px (12,288) |
| Brightness | 1,000 cd/m² (auto dimming) |
| Refresh rate | 1920-3840 Hz |
| Scan mode | constant current, high scan |
| Protection | IP40 |
| LED lamp | Kinglight |
| Cabinet material | steel cabinet |
| Cabinet weight | about 7.4 kg (24 kg/m²) |
| Average power | about 217 W/m² |
| Viewing distance | 7.5 m minimum, 15 m comfortable |
| Lifespan | 100,000 hours |
| Warranty | 3 years |
The table shows the standard build for this P5 Indoor Rental LED Screen. Cabinet size, brightness and control system can be changed per project; the final datasheet is issued with the PI before production. Cabinets are tested against IEC 60068 for temperature, humidity and vibration.
How the numbers work on a real wall
To size this P5 Indoor Rental LED Screen, start from whole cabinets: a 4×3 build gives a 2.56×1.44 m screen, 512×288 pixels (0.15 MP), about 27 kg of cabinet and an average load near 800 W. Add one row and the same cabinet family gives 1.92 m height with no new tooling, which is why projects usually fix the wall size first and the pitch second.
Product details
Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Where the P5 Indoor Rental LED Screen is used
- Retail stores – promotional walls and window displays.
- Conference and hotel lobbies – welcome screens and event schedules.
- Corporate offices – reception media walls and internal comms.
- Education – lecture theatres and campus wayfinding.
Installation and service access
Indoor screens are typically wall-mounted on a bracket or recessed into a joinery frame. Because the viewing distance is short, we set brightness to 600-1200 nits and use a low-brightness calibration so the wall does not glare in a dim room.

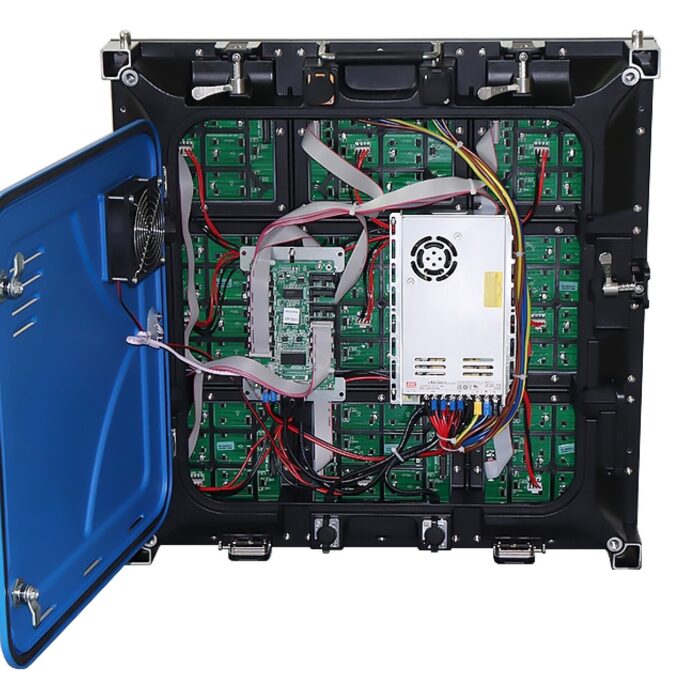

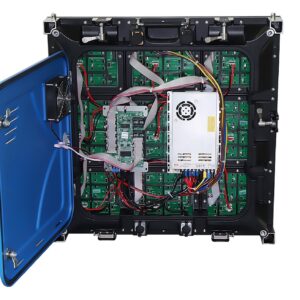

A magnetic front-service module means the screen can sit flush against a finished wall. 3-year warranty on modules, power supplies and receiving cards; spare parts held in Shenzhen for five years after the order.
P5 Indoor Rental LED Screen: frequently asked questions
Which control system does the P5 Indoor Rental LED Screen use?
NovaStar or ColorLight, both supplied or BYO. The screen accepts HDMI, DVI and SDI input through a video processor, and content can be scheduled per zone or per time slot.
Can I see this LED display running before I order?
Yes. We send a video of the exact cabinet type under a white and a grey test pattern, plus a phone camera pan, so you can judge scan lines and uniformity before the deposit.
What does the 3-year warranty cover?
LED modules, drivers, receiving cards and cabinet hardware, with free replacement of failed units in the first 3 years and chargeable spares held for five.
Can you put our brand on the P5 Indoor Rental LED Screen?
Yes. OEM branding covers the cabinet badge, the packing label and the manual, and the control software can be locked to your logo on request.
Request a price for the P5 Indoor Rental LED Screen
Send the screen size, viewing distance and project country, and our engineers return a layout drawing, a resolution map and a factory price within 24 hours. Similar models are listed under Indoor LED Panel 640×480 range, and you can compare p1.83 indoor led cabinet, p1.53 indoor led cabinet. Direct contact goes through the contact page. When you compare quotations, ask every supplier for the module brand, the power-supply brand and the spare ratio in the carton – that is where prices usually differ.
