P3mm Soft Flexible LED Display Module

Product Details:

Place of Origin:

Shenzhen, China

Brand Name:

Vios

Certification:

CCC, CE, ROHS FCC

Model Number:

P3mm

    P3mm Soft Flexible LED Display Module

    Payment & Shipping Terms:

    Minimum Order Quantity:
    Negotiation
    Price:
    Negotiation
    Packaging Details:
    Flight case, export wooden case
    Delivery Time:
    10-20 working days
    Payment Terms:
    T/T, Western Union, MoneyGram
    Supply Ability:
    1000sqm/month
    Detailed Product Description
    Usage:
    Indoor
    Meterial:
    Iron
    Cabinet Size:
    576mm * 576mm
    Refresh Rate:
    3840
    Display Function:
    Video
    Working Voltage:
    AC 100 ~ 240V
    Brightness:
    1000CD/sqm
    IP Rate:
    43
    High Light:
    360 degree led display
    , circular led screen
    HD Curved LED Display , Circular LED Screen Aluminum Full Color For Live Broadcast
    Quick Detail:

    1. SMD2121 black LED;
    2. 1.6 mm thickness PCB;
    3. 1024 × 832 pixels per screen;
    4. 111,111 dots/sq.m;
    5. 2038 IC;
    6. 1,920 Hz refresh rate.

    Main features of Vios HD Curved LED Display:

    1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen’s surface even flatter.
    2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
    3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.

    4. High contrast and high refresh rate help the LED display’s image be rendered without any delay, and without leaving any kind of streaks or trails.
    5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
    6. Professional aviation packaging protects the control equipment extremely well
    7. Light, ultra-thin display cabinet’s total weight is only 25kg.
    8. Standard cabinet size is 576mm*576mm.
    9. Dustproof design, the screen is rated IP43.

    Product Specifications:

    Parameter
    Value
    Physical Parameter
    Pixel Configuration
    1R1G1B
    Pixel Pitch (mm)
    3
    Pixel Matrix per m2 (dots)
    111111
    Pixel Matrix per Module
    64*64
    Pixel Matrix per Panel
    192*192
    Module Dimensions (L*W) / (mm)
    192*192
    Module Quality per Cabinet
    3*3
    Panel Dimension (L*W) / (mm)
    576 * 576
    Panel Material
    Iron / Aluminum
    Panel Weight (Kg)
    25
    Electronic Parameter
    Color Grayscale (Bit)
    14
    Gray Scale per Color (Level)
    16384
    Refresh Rate (Hz)
    1280
    Driving Type
    1/32
    Frame Frequency (Hz)
    50/60
    Signal Transmission Distance (m)
    CAT5 cable:<100m;Single mode fiber:<10km
    Optical Parameter
    Brightness (cd/m2)
    ≥800
    Color Temperature (K)
    6500-7500
    Color Contrast
    4000:1
    Optimal Horizontal Viewing Angle (°)
    160
    Optimal Vertical Viewing Angle
    160
    Electrical Parameter
    AC Input Voltage (V)
    100~240
    AC Input Frequency (Hz)
    50/60
    AC Input Power Maximum Value (W/m2)
    1000
    AC Input Power Typical Value (W/m2)
    250
    Circumstance Parameter
    Storage Temperature (℃)
    -40~+60
    Operating Temperature (℃)
    -20~+50
    Storage Humidity (RH)
    10%~90%
    Operating Humidity (RH)
    10%~90%
    IP Rating (Front / Rear)
    IP43 / IP31
    Lifrtime Typical Value (Hrs)
    100,000
    Installation type
    Cabinet Installation Type
    Fixed
    Maximum Number of Panel for Lifting
    8

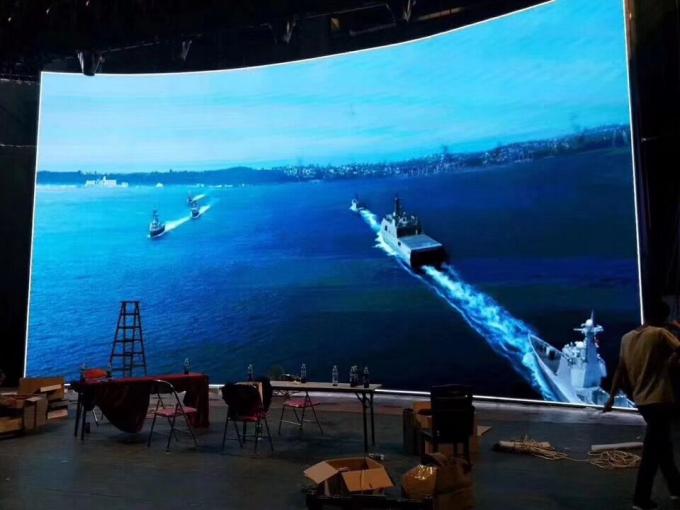

    Application of HD Curved LED Display:
    Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall.
    With small cabinet size: 768 x 768mm, Die-casting aluminum structure with high precision and cooling effect.

    HD Curved LED Display , Circular LED Screen Aluminum Full Color For Live Broadcast 0
