Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Vios |
Certification: | CE,RoHS,UL |
Model Number: | P3.91 |
Payment & Shipping Terms:
Minimum Order Quantity: |
Negotiation |
Price: |
Negotiation |
Packaging Details: |

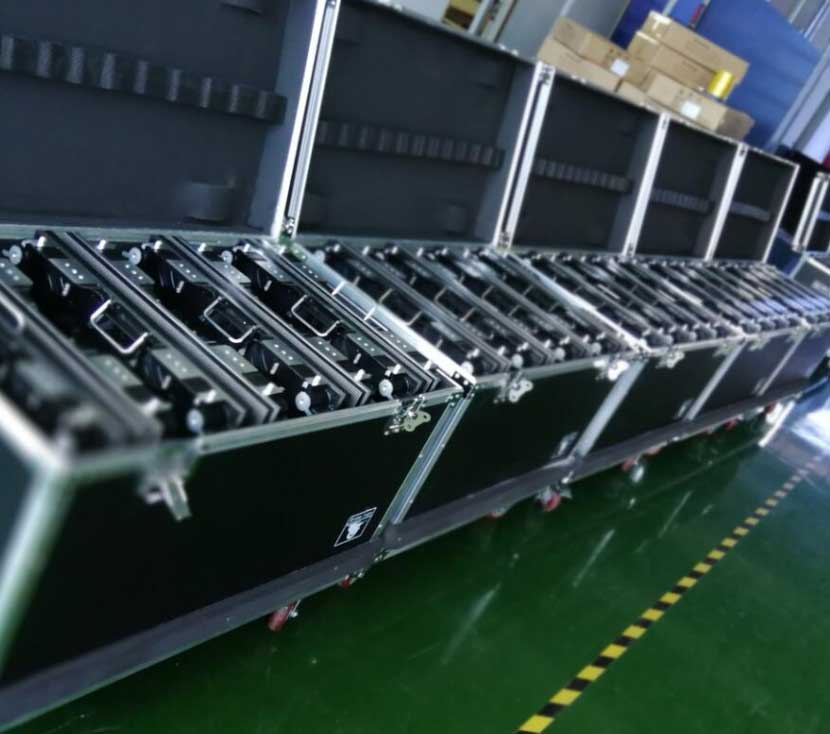

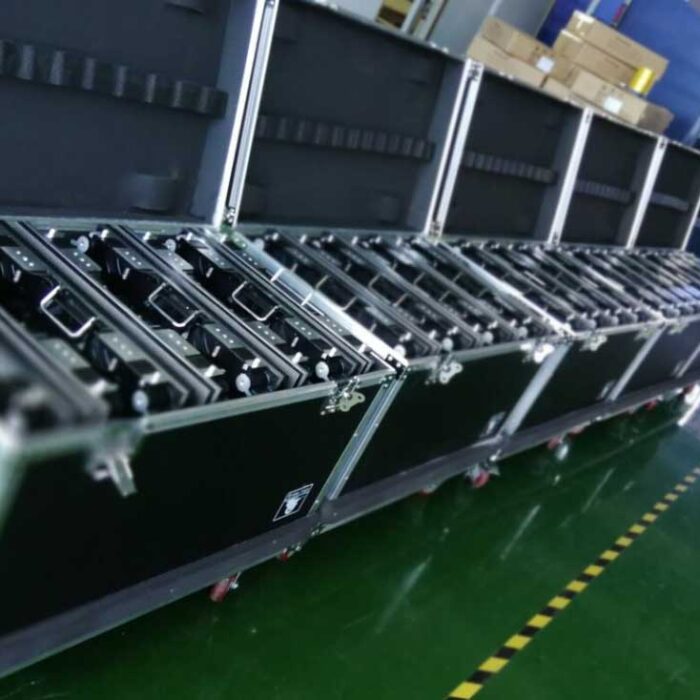

flight case; export wooden case |
Delivery Time: |
15~25 working days |
Payment Terms: |
T/T, Western Union, MoneyGram |
Supply Ability: |
5000Sqm/month |
Detailed Product Description
Pixel: | P3.91 | Scan: | 1/16 Scan |
Module Size: | 250mmx250mm | Module Pixel: | 64×64 |
IC: | MBI5124 | LED: | SMD 3in1 |
High Light: | rental full color stage LED display, rental stage LED display |

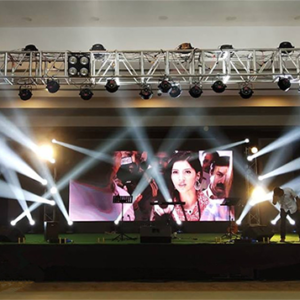

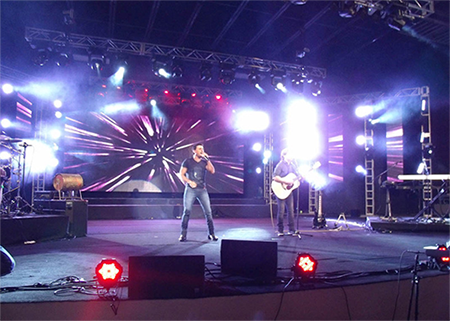

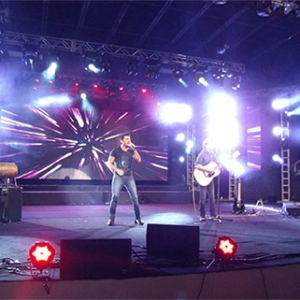

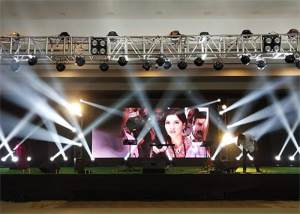

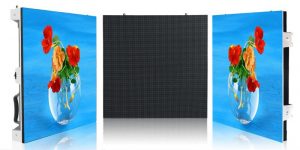

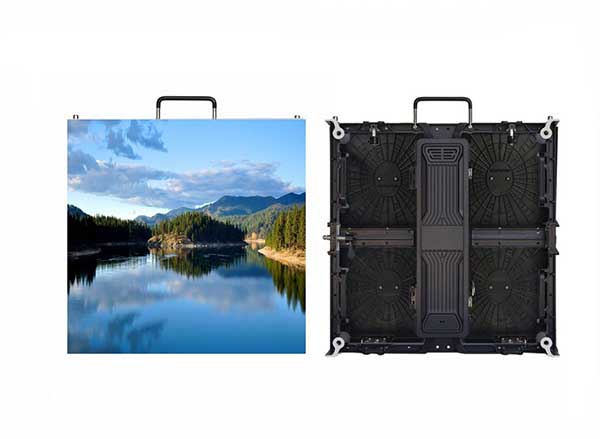

Rental P3.91 stage LED display, ultra-wide viewing angle full-color stage LED video
Product features:

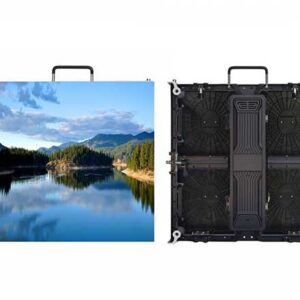

1) Using the die-cast aluminum cabinet, the product is light, thin, and durable, the panel thickness is only 80mm, and the weight is the only 8KG; the flatness of the panel surface is high (precision can reach 0.01mm), seamless installation between adjacent cabinets is achieved, and the appearance is elegant and high-end.
2) With the handle and quick lock design, it is convenient to install and disassemble, and it can be assembled quickly and efficiently without tools, helping customers to easily transport and install, and greatly reduce the cost of use!
3) High-definition, high refresh rate 1,920Hz and 16-bit grayscale, the video or image displayed on the LED screen is very smooth and clear, and the viewing experience is shocking.
4) The viewing angle of the LED display screen is large, the image is clear and uniform, the vertical maximum viewing angle is 160 degrees, the horizontal maximum viewing angle is 160 degrees, the display coverage area is larger, there is no dead angle, no color cast, and the image is always perfect, seamless and uniform.
Product specification:
Parameter |
Unit |
Value |
Brightness |
nits |
1000 |
Color temperature |
Deg.k |
3200 ~ 9300 |
Viewing angle – Horizontal |
Deg. |
140(+70/-70) |
Viewing angle – Vertical |
Deg. |
140(+70/-70) |
Cabinet weight |
kg |
8 |
Cabinet width |
mm |
500 |
Cabinet height |
mm |
500 |
Cabinet depth |
mm |
80 |
Cabinet area |
sq. m. |
0.25 |
Cabinet material |
Aluminum |
|
Aspect ratio |
1:1 |
|
Ingress protection (Front/Rear) |
IP |
IP40/IP20 |
Operating temperature range |
Deg. C |
0 to 40 |
Operating humidity range |
HR |
10% to 90% |
Pixel type and configuration |
R/G/B |
SMD 3in1 |
Pixel pitch |
mm |
3.91 |
Pixel matrix per cabinet |
128×128 |
|
Pixels per cabinet |
16384 |
|
Lines per meter |
256 |
|
Pixels per sq. meter |
65536 |
|
LEDs per sq. meter |
65536 |
|
Recommended minimum viewing distance |
m |
4 |
Colous |
281 trillion |
|
Gray scale |
Levels |
65536 levels per color |
Brightness control |
Levels |
100 |
Digital processing |
bit |
16 |
Frame rate |
Hertz |
60 |
Display refresh rate |
Hertz |
1440 |
Input voltage |
VAC |
110/240 |
Input power frequency |
Hertz |
50/60 |
Input power (Max/Avg) |
Watts per sq.m |
600/210 |
MTBF |
Hours |
≥10000 |
Lifetime (50%Brightness) |
Hours |
≥100000 |
Module brightness uniformity |
<5% |
|
Blind spot rate |
<0.0001 |
|
Earth leakage current |
mA |
<2 |
Red wavelength |
nm |
623 |
Green wavelength |
nm |
525 |
Blue wavelength |
nm |
470 |
Panel input format (with video processor) |
VGA, DVI, SDI, YPbPr (HDTV), Composite, S-Video, TV |
|
Data interconnection |
CAT6 cable/Fiber |
|
Operating system |
Windows (XP/Vista/7/8/10) |
|
Control distance |
Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Our Services
Pre-producing:
1.Get complete requirements of clients.
2.To do a thorough analysis.
3.Offering a most reasonable and scientific solution.
4.Customized design.
In producing:
1.Producing progress is updating for clients.
2.Providing Installation drawing for clients.
After service:
1.5 years of free maintenance.
2.7 days a week, 24 hours a day on-line technical support for any clients.
3.Free training for customers in the factory.
4.Local Installation Guidance Service.
