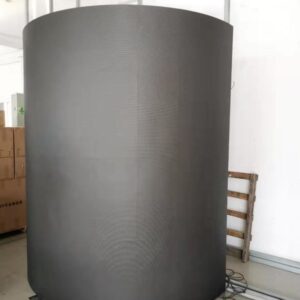

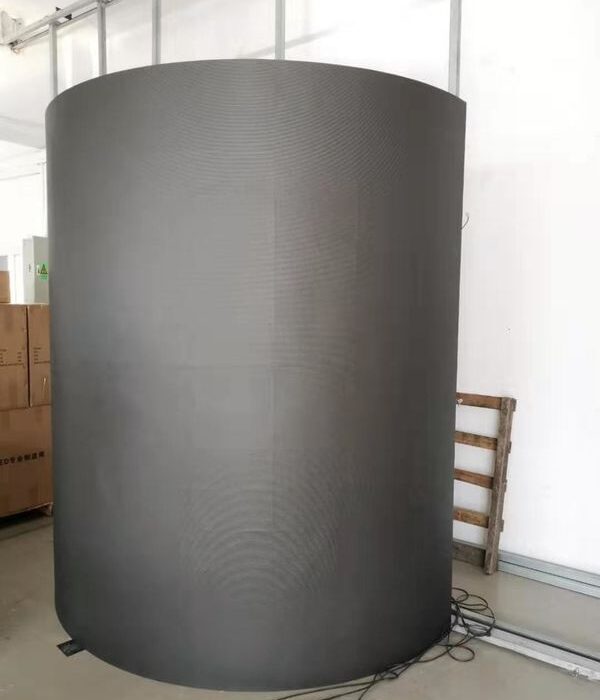

Full Color Round LED Curtain Screen , LED Stage Curtain Screen For Live Events

Product Details:
Place of Origin: CHINA
Brand Name: Vios
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P4
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month

Product description

Lamp Size: 2121 Resolution/mm: 4
Pixel Configuration: RGB 3 In 1 Pixel Density/pixels/m²: 40000/m²
Module Size/mm: 256*128 Warranty: 3 Years
Application: Live Events Led Display
High Light: flexible led stage screens, flexible led screen wall

Soft P4 Indoor Full Color Round Advertising LED ScreensCylindrical For Live Events

Main Features
1: Bendable, it can be assembled at any uneven or irregular locations.
2: Super thin Flexible LED Video Display is one of the thinnest & lightest LED Video Display in the world with special materials and advanced technology.
3: Easy to splice, install and maintain modularization design and no other connected cables make the installation so easy. User just mounts iron sheet or magnetic product on the surface in the first, then stick the flexible LED Video Display on the surface.
4: Low power consumption the maximal power consumption of a module is less than 12W.
5: Wide application can be uesd in so many fields and occasions, especially in all kinds of irregular. For example hotel advertising, stage renting television, dhopping malls, big markets, outdoor stadiums, concerts, fairground, sightseeing districts, etc…

♦ Product specification

indoor SMD P4
Lamp size 2121
Resolution/mm 4
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 40000/m²
Module resolution 64×32
Module size/mm 256*128
View distance ≥0.5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/32
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

♦ Product Overviews

Items Indoor Led display:
p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.



P4 outdoor indoor led screen
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.

Our team will be forever here to offer you full supports
Tag:advertising led display board,advertising led billboard
