Concert Stage Indoor Full Color LED Display P5 HD Big Screen High Resolution

Product Details:
Place of Origin: China(Mainland)
Brand Name: Vios
Certification: CE,ISO,FCC,UL
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: 5m²
Price: 600-700USD/M²
Packaging Details: Wooden and flight cases,it’s all up to you.
Delivery Time: 10-12 working days after receiving your down payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000M/²/Month

Product description

Product Brand: Vios RGB LED Display Popuse: Renatl/Fixed
Application Place: Indoor/Outdoor Pixel Pitch: 5MM
Module Size: 320*160MM Cabinet Size: 640*640MM
Resolution: 64*32 Scan Mode: 1/16
Type Of Cabinet: Die-cast Aluminum/Iron Brightness: ≥1000cd/m²
High Light: led full color screen, indoor led display screen

Indoor Full color LED Display P5 for Concert Stage HD Big Screen High Resolution


Indoor series:

For indoor we have small pixel pitch,these kinds of products have high resolution and vivid video.

Like the P1.667,P1.923,P2,P2.5,P3.And a little bigger than these are P3.91,P4,P4.81,P5,P6.The latter

is better used for the bigger screen,will have the better effect.


Application places:

Train station,airport,supermarkets,wedding party,concerts and ect.


Specifications of product:

Indoor P5 LED screen Display
Resolution/mm 5
Pixel configuration 1R1G1B
Pixel density/pixels/m² 40000/square meter
Module resolution 64*32mm
Module size/mm 320*160mm
View distance ≥5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1000cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/16
Fresh rate 60Hz
Refresh frequency >1000Hz
Control mode Computer synchronous
Out of control point <1/10000
Aging hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

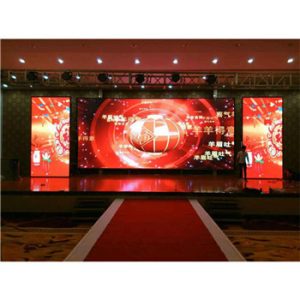

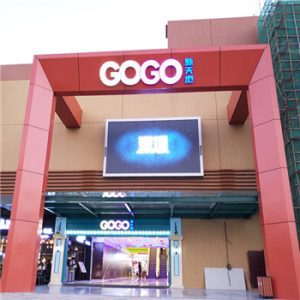

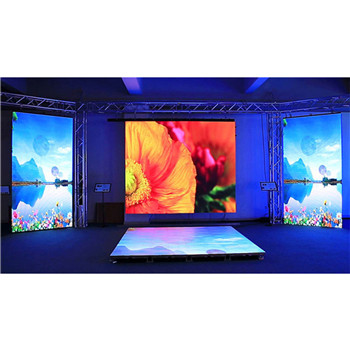

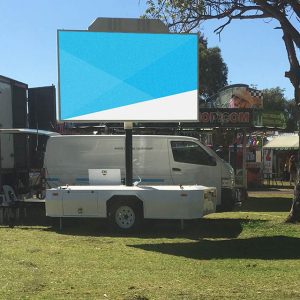

Our cases:

P5 indoor HD SMD Fullcolor led wall
