Advertising LED Screens Outdoor P8 full color smd3535 LED video display screen advertising 1024x1024mm iron cabinet

Advertising LED Screens Outdoor P8 full color smd3535 LED video display screen advertising 1024x1024mm iron cabinet

Product Details:
Place of Origin: CHINA
Brand Name: Vios
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P8
Payment & Shipping Terms:
Minimum Order Quantity: 6sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5600 sqm month
Inquiry

Product description

Application:: Outdoor Color:: Full-color, 1R1G1B
Panel Size:: 256*128mm, 320*160mm Pixel Pitch:: 8mm
Brightness:: 5000cd/sqm LED Chip:: Epistar
Input Voltage:: AC220V/50Hz Or AC110V/60Hz Certificate:: CE ROHS EMC FCC
Controlling Mode:: Synchronization Or Asynchronous
High Light: advertising led display board, outdoor advertising led display

Outdoor P8 full color smd3535 LED video display screen advertising 1024x1024mm iron cabinet



Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.

♦ Product specification

outdoor P8
Lamp size 3535
Resolution/mm 8
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 15625/m²
Module resolution 32×16
Module size/mm 256×128
View distance ≥6m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode constant driving static
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <650W
Average power:/㎡ <260W
Self-check technology LED spot self-check, communications check, power check,temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Our company

20200825102339_97882



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

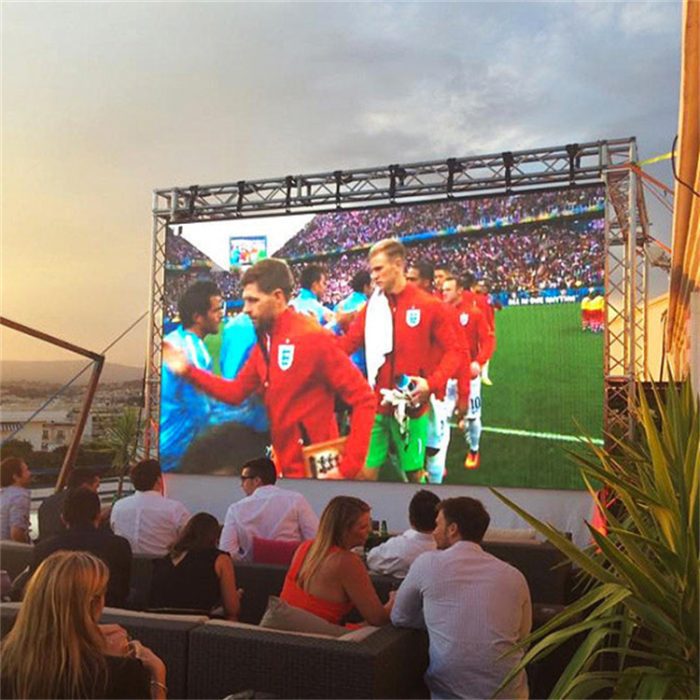

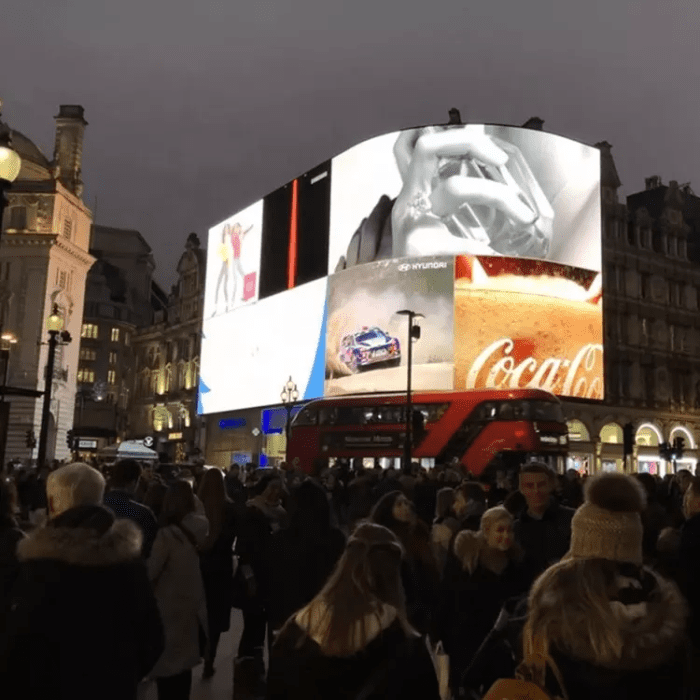

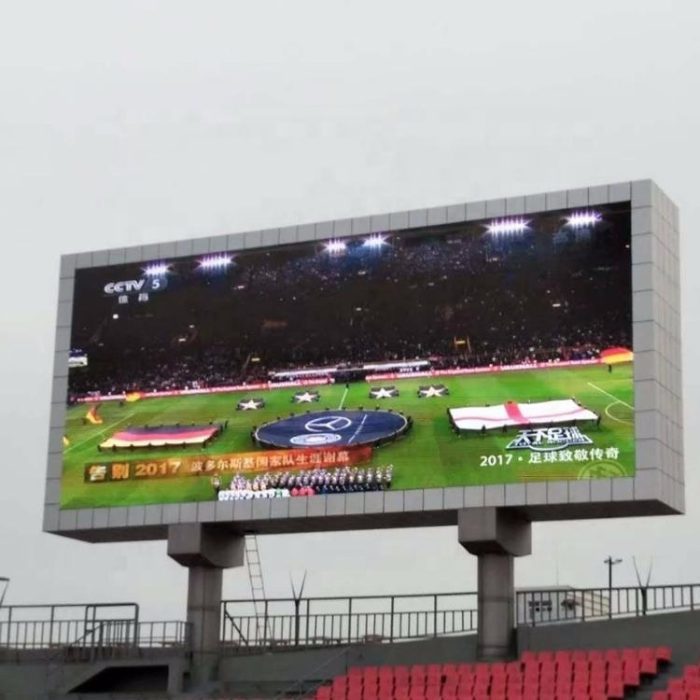

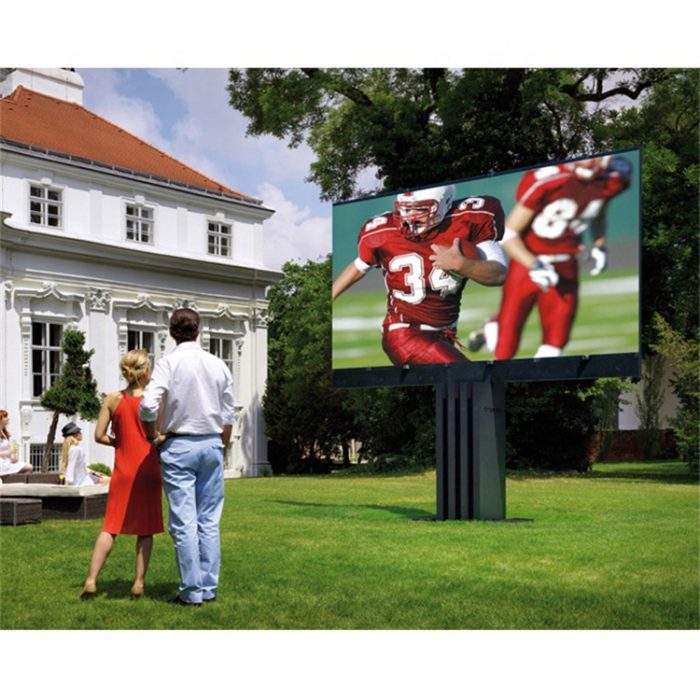

Case

outdoor advertising screen

♦ Packaging and shipping

Wooden case or flight case package are available.





FAQ

Q1: What`s your payment term? How long it takes to delivery?

A: We accept T/T and L/C, For both T/T and L/C,Our average Production time is 16 days, after receiving the deposit.

Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q3: What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts. Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q4: What’s the control system?
A: We use NOVA/ Colorlight control system.

Q5: What’s the warranty of your LED Display Screen ?
A: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q6. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.



Our team will be forever here to offer you full supports !!!



Contact Person: HERO
Business Developer.
Email : liujinmiao@wehchi.com
Skype: liujinmiaohero@outlook.com
Wechat & Whatsapp & Mobile : +86 18923432534
Linkedin : :https://www.linkedin.com/feed/
FaceBook :https://www.facebook.com/profile.php?id=100066426288768
Shenzhen Vios Electronic Technoloy Co., Ltd
“customer first, integrity first, innovation, and strive for perfection”
Add : Room C411 Floor 4, C Building, Sijixingcheng, Zhenming Road No.161, Gongming Town, Guangming new district, Shenzhen City, China
Tel:+86-0755-86902546
