Product Detail
The P10 Stadium Perimeter LED Display from Leyarled is a factory-direct screen for football and soccer stadiums and similar projects, built to run every day without babysitting. It uses a 10mm pixel pitch, 1920-3840 Hz refresh and a sealed cabinet, and it ships with the layout drawing, control configuration and spare modules already matched to your order.
P10 Stadium Perimeter LED Display: key features
- Front-service magnetic modules – a failed module is swapped in minutes without removing the cabinet from the frame.
- P10 stadium perimeter LED display with 1920-3840 Hz refresh – no scan lines on camera and no visible flicker in video playback.
- Sealed cabinet with pressure valve – moisture cannot be pulled in when the screen heats and cools through the day.
- Calibrated at the factory before packing – brightness and colour are matched across cabinets so a 50 sqm wall still reads as one surface.
Technical specifications
| Parameter | Value |
|---|---|
| Pixel pitch | 10mm |
| Module size | 320x160mm |
| Cabinet size | 960x960mm |
| Brightness | 6500-7500 cd/sqm |
| Refresh rate | 1920-3840 Hz |
| Scan mode | constant current, high scan |
| Protection | IP54 |
| LED lamp | Epistar |
| Cabinet material | Steel Cabinet |
| Lifespan | 100,000 hours |
| Warranty | 3 years |
Values above are the standard configuration for this P10 Stadium Perimeter LED Display. Cabinet size, brightness and control system can be changed per project; the final datasheet is issued with the PI before production starts. Panels are tested against IEC 60068 environmental test methods for temperature, humidity and vibration.

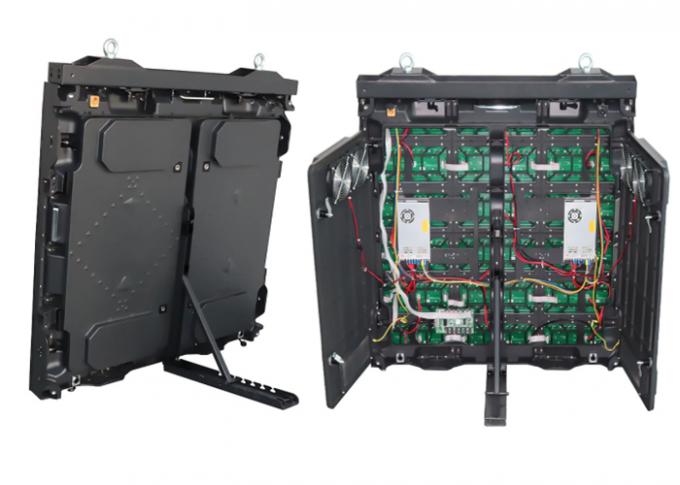

Product details
- flight case packing for die casting aluminum cabinet.
Vios has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
- Provide unique and professional solutions based on customer’s requirement.
- Other services, such as special packing design, factory visiting and so on.
- Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Where the P10 Stadium Perimeter LED Display is used
- Football and soccer stadiums – pitch-side advertising boards that stay readable for broadcast cameras.
- Multi-sport arenas – basketball, athletics and hockey venues that reuse one screen across seasons.
- Race circuits – long runs of panels along the track with quick-lock frames.
- Training grounds and academies – smaller banner runs for sponsorship during practice sessions.
A note on the P10 Stadium Perimeter LED Display: broadcast cameras expose flicker and colour shift faster than the human eye, so we test each perimeter batch on a 1920 Hz and 3840 Hz playback loop before packing.
Installation, delivery and warranty
For the P10 Stadium Perimeter LED Display, the cabinets bolt onto a steel frame or a motorised goal-post system, and the top edge sits at roughly 900-1000 mm so players and officials are not obstructed. A front-service design keeps maintenance on the pitch side, which matters when the rear of the board faces a crowd barrier.
Protective soft-mask and anti-collision padding are recommended where players can slide into the board. Delivery is 7-12 working days for standard cabinets and 15-20 days for a full project with structure and control. The screen carries a 3-year warranty covering modules, power supplies and receiving cards, with spare parts held in Shenzhen for five years after the order.
Frequently asked questions
What is the lead time for a P10 Stadium Perimeter LED Display order?
Standard P10 cabinets ship 7-12 working days after the deposit clears. Custom cabinet sizes, curved frames or a project-specific power distribution add 3-5 days. We send a production photo set before the goods leave the factory.
Can you build this P10 Stadium Perimeter LED Display in a custom size?
Yes. Send the wall width, height and viewing distance and our engineer returns a cabinet layout, a resolution map and a power estimate within 24 hours. Non-standard sizes are cut from the same cabinet family, so spares stay interchangeable.
How is the P10 Stadium Perimeter LED Display shipped and what about spare parts?
Plywood case or flight case, sea or air freight, with a 2-3% spare module and power supply allowance included in the carton. Every order carries a serial list so a spare module can be matched to the cabinet it came from.
Request a quote for the P10 Stadium Perimeter LED Display
Send the screen size, viewing distance and project country to our engineers and you will get a layout drawing, a resolution map and a factory price within 24 hours. More models in this range are listed under Stadium Perimeter LED Display, and you can reach the sales team through the contact page. If you are comparing suppliers, ask each one for the same three things: module brand, power supply brand and the spare-part ratio in the carton – that is where quotations usually differ.
