Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Vios |
Certification: | CE , RoHS, UL |
Model Number: | P4.81 |

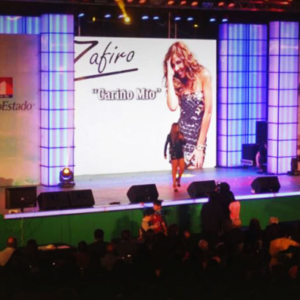

Whether you host a small event or a large corporate gathering, you should rental led stage screen to make them look more effective and visible. To do this, it’ s important to understand everything you need to know about these screens and buy the right options.
Payment & Shipping Terms:
Minimum Order Quantity: |
Negotiation |
Price: |
Negotiation |
Packaging Details: |
flight case; export wooden case |
Delivery Time: |
15~25 working days |
Payment Terms: |
T/T, Western Union, MoneyGram |
Supply Ability: |
5000Sqm/month |
Detailed Product Description
Pixel Pitch: | 4.81mm SMD 3in1 2020 | Brightness: | 2000cd/sqm |
Pixel Density: | 65536 Pixels/sqm | Module Size: | 250mm*250mm |
Protection Level: | IP43(Optional IP65) | Power Supply: | Meanwell |
Working Voltage: | AC 110V~220V±10% | Weight Of One Cabinet(Kg): | 6.5KG |
Cabinet Dimension: | 500mm X 500mm / 500mm X 1000mm X 60mm Viewing Angle: H 160°/V120° | ||
High Light: | rental stage background led display, led stage screen rental |
Product features:
1)Special design of high contrast mask: 5000: 1 positioning angle and 160 Â ° C larger viewing angle;
2)Due to the low power consumption of high PFC power supply, only 30 LED drives per design are available.

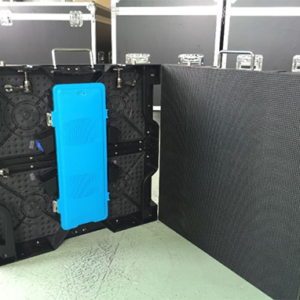

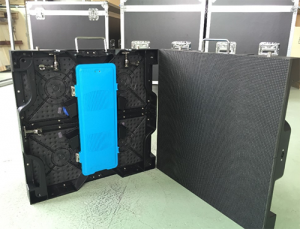

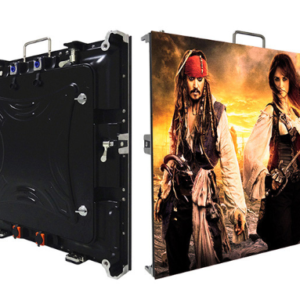

3) Faceplate adopts high precision CNC lathe, stable quality, seamless connection between adjacent machine boxes, elegant and high-grade appearance.
4)Both the power supply and signal are double backed up, and the performance is reliable.
5)High refresh rate, high grayscale, no jitter when video display, can be used for live television programs, using pixel correction technology.
Product specification:
Pixel Pitch: | 4.81mm SMD 3in1 2020 | |
Pixel Density: | 65536 Pixels/sqm | |
Protection Level: | IP43(Optional IP65) | |
Working Voltage: | AC 110V~220V±10% | |
Cabinet Dimension: | 500mm X 500mm / 500mm X 1000mm X 60mm | |
Brightness: | 2000cd/sqm | |
Module Size: | 250mm*250mm | |
Power Supply: | Meanwell | |
Weight Of One Cabinet(Kg): | 6.5KG | |
Viewing Angle: | H 160°/V120° | |
Module Resolution(W*H) |
104*208 | |
Pixel Configuration |
1R1G1B(in 3 n 1) | |
LED Encapsulation |
Black SMD 3528 | |
Pixel Density | 43264 Pixel/sqm | |
Driving Method | 1/13 Scan | |
Refresh Frequency |
≥2880Hz (Support High refresh rate, depend on the system configuration) | |
Driver IC | Special constant current IC with high refresh rate & high grey scale | |
Grey Scale | 14Bit (depending on the system and IC configuration) | |
Cabinet Size | 500*1000mm | |
White balance Brightness |
≥900cd/ sqm | |
Color Temperature |
8000K±500 (adjustable) | |
Viewing Angle | Horizontal 140° Vertical 120° | |
Optimal Viewing Distance |
>5m | |
Working Voltage | AC 220V/110V ±10% | |
Module voltage | DC4.2V | |
Max Power Consumption |
250W/PCS | |
Avg. Power Consumption |
125W/PCS | |
Lifetime | 50000hours | |
Operating Temperature |
–10℃ ~ 65℃ | |
Net weight | 13Kg/pcs | |
Pre-producing:
1.Get complete requirements of clients.
2.To do a thorough analysis.
3.Offering a most reasonable and scientific solution.
4.Customized design.
In producing:
1.Producing progress is updating for clients.
2.Providing Installation drawing for clients.
After service:
1.5 years of free maintenance.
2.7 days a week, 24 hours a day on-line technical support for any clients.
3.Free training for customers in the factory.
4.Local Installation Guidance Service.
tag: led stage background display, Full color led stage display rental
