Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Vios |
Certification: | CE,RoHS,UL |
Model Number: | P3.91 |
Payment & Shipping Terms:
Minimum Order Quantity: |
Negotiation |
Price: |
Negotiation |
Packaging Details: |
flight case; export wooden case |
Delivery Time: |
15~25 working days |
Payment Terms: |
T/T, Western Union, MoneyGram |
Supply Ability: |
5000Sqm/month |
Detailed Product Description
Pixel: | 3.91mm | Thickness: | 80mm |
Cabinet Size: | 500x1000mm | Refresh: | 3840Hz |
Contrast: | 3000:1 | Materia: | Die Cast Aluminum |
High Light: | led rental screen, hire led screen |

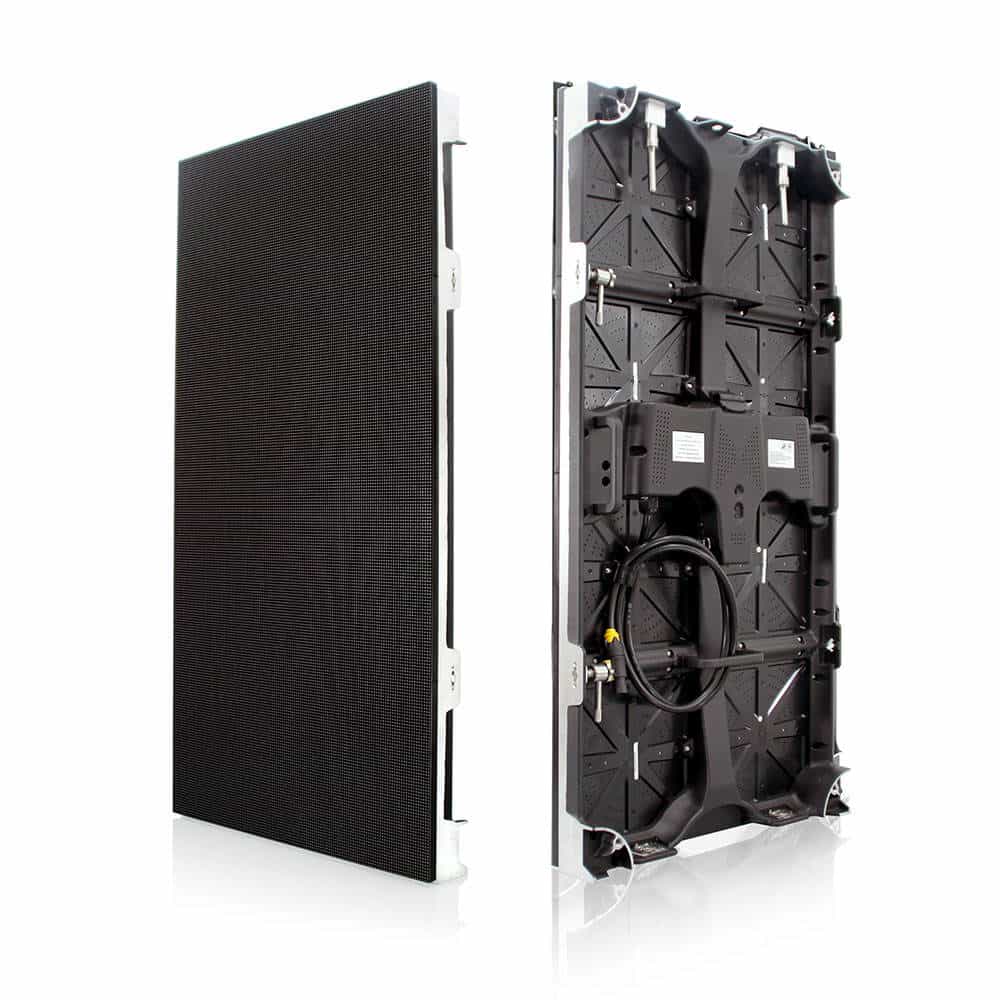

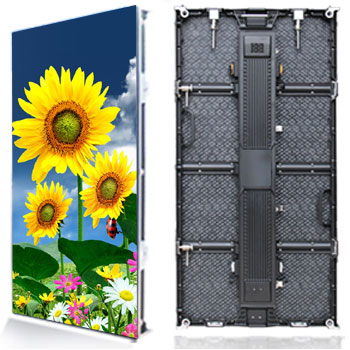

P3.91 Beautiful full color ultra-thin high refresh rate stage rental LED display
Product features:
1) The viewing angle of the LED display screen is large, the image is clear and uniform, the vertical maximum viewing angle is 160 degrees, the horizontal maximum viewing angle is 160 degrees, the display coverage area is larger, there is no dead angle, no color cast, and the image is always perfect, seamless, and uniform.
2) High refresh rate, high brightness and high contrast, make the screen without any delay and smear phenomenon under direct sunlight, ensuring the extremely high level of vivid image of our LED display system.
3) The LED screen is a die-cast aluminum cabinet with stable quality, the installation tolerance can be controlled within 0.2mm, there is almost no gap between adjacent cabinets, and the appearance is elegant and high-end.
4) Low-current, high-brightness lights, equipped with PFC switching power supply, can save 30% of electricity.
5) We are a professional manufacturer and have introduced a fully automatic production line with the characteristics of reducing labor costs and management costs. Our price is 10% lower than the market price and the quality is more reliable.
Product specification:
Brightness |
nits |
4200 |
Color temperature |
deg.k |
3200 ~ 9300 |
Viewing angle – Horizontal |
deg. |
160(+80/-80) |
Viewing angle – Vertical |
deg. |
160(+80/-80) |
Cabinet weight |
kg |
14 |
Cabinet width |
mm |
500 |
Cabinet height |
mm |
1000 |
Cabinet depth |
mm |
80 |
Cabinet area |
sq. m. |
0.50 |
Cabinet material |
Aluminum |
|
Aspect ratio |
1:2 |
|
Ingress protection (Front/Rear) |
IP |
IP65/IP54 |
Operating temperature range |
deg. C |
– 20 to 50 |
Operating humidity range |
HR |
10% to 90% |
Pixel type and configuration |
R/G/B |
SMD 3in1 |
Pixel pitch |
mm |
3.906 |
Pixel matrix per cabinet |
128×256 |
|
Pixels per cabinet |
32768 |
|
Lines per meter |
256 |
|
Pixels per sq. meter |
65544 |
|
LEDs per sq. meter |
65544 |
|
Recommended minimum viewing distance |
m |
4 |
Colours |
281trillion |
|
Gray scale |
Levels |
65536 levels per colour |
Brightness control |
Levels |
100 |
Digital processing |
bit |
16 |
Frame rate |
Hertz |
60 |
Display refresh rate |
Hertz |
1920 |
Input voltage |
VAC |
110/240 |
Input power frequency |
Hertz |
50/60 |
Input power (max/avg) |
Watts per sq.m |
800/280 |
MTBF |
Hours |
≥10000 |
Lifetime (50%Brightness) |
Hours |
≥100000 |
Module brightness uniformity |
<5% |
|
Blind spot rate |
<0.0001 |
|
Earth leakage current |
mA |
<2 |
Red wavelength |
nm |
623 |
Green wavelength |
nm |
525 |
Blue wavelength |
nm |
470 |
Panel input format (with video processor) |
VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
|
Data interconnection |
CAT6 cable/Fiber |
|
Operating system |
Windows(XP/Vista/7/8/10) |
|
Control distance |
Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Our Services
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 5 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
tag: full color LED display, high refresh rate stage rental LED display
