Product Detail

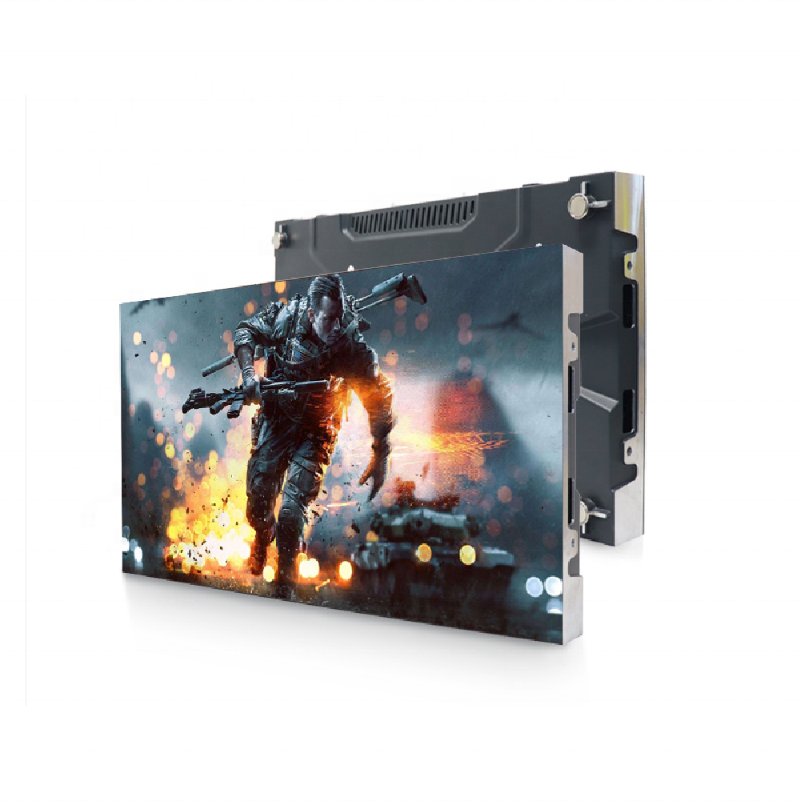

The P2 Indoor LED Display Screen from Leyarled is a 640×480 mm indoor LED display for reception walls, retail and wayfinding, built around a P2 screen that resolves 76,800 pixels per cabinet. Cabinets are sealed to IP34, run 1,000 cd/m² with 1920-3840 Hz refresh, and ship with the layout drawing, control configuration and spare modules already matched to the order.
P2 Indoor LED Display Screen: key features
- 76,800 pixels per cabinet (P2, 640×480 mm) – so a wall built from whole cabinets never needs a half-module filler.
- NovaStar and ColorLight compatible control – sending cards, processors and cloud players can be sourced locally.
- IP34 sealed cabinet with pressure valve – the breathable valve equalises pressure so gaskets are not stressed.
- 1,000 cd/m² with automatic brightness control – daylight legible at 6 m, dimmed at night to stay inside local light rules.
P2 Indoor LED Display Screen technical specification
| Parameter | Value |
|---|---|
| Pixel pitch | P2 (2 mm) |
| Module size | 320×160 mm |
| Module count | 6 per cabinet |
| Cabinet size | 640×480 mm |
| Resolution per cabinet | 320×240 px (76,800) |
| Brightness | 1,000 cd/m² (auto dimming) |
| Refresh rate | 1920-3840 Hz |
| Scan mode | constant current, high scan |
| Protection | IP34 |
| LED lamp | Kinglight |
| Cabinet material | die-cast aluminium |
| Cabinet weight | about 7.4 kg (24 kg/m²) |
| Average power | about 217 W/m² |
| Viewing distance | 3 m minimum, 6 m comfortable |
| Lifespan | 100,000 hours |
| Warranty | 3 years |
The table shows the standard build for this P2 Indoor LED Display Screen. Cabinet size, brightness and control system can be changed per project; the final datasheet is issued with the PI before production. Cabinets are tested against IEC 60068 for temperature, humidity and vibration.
How the numbers work on a real wall
The arithmetic behind this P2 Indoor LED Display Screen is simple enough to check before you order: 640÷2 = 320 pixels across each cabinet and 480÷2 = 240 down, so six cabinets in a row resolve 1,920 pixels at 3.84 m wide. Viewing distance follows the pitch – 3 m before the pixel structure disappears, 6 m before body copy reads cleanly. Because the cabinet divides into 6 standard 320×160 mm modules, a replacement module is never a custom order.
Product details
Indoor aluminium frame full color led display has CE certification and.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
Indoor aluminium frame full color led display has Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen’s investment.
Where the P2 Indoor LED Display Screen is used
- Corporate offices – reception media walls and internal comms.
- Education – lecture theatres and campus wayfinding.
- Retail stores – promotional walls and window displays.
- Conference and hotel lobbies – welcome screens and event schedules.
Installation and service access
Indoor screens are typically wall-mounted on a bracket or recessed into a joinery frame. Because the viewing distance is short, we set brightness to 600-1200 nits and use a low-brightness calibration so the wall does not glare in a dim room.
A magnetic front-service module means the screen can sit flush against a finished wall. 3-year warranty on modules, power supplies and receiving cards; spare parts held in Shenzhen for five years after the order.
P2 Indoor LED Display Screen: frequently asked questions
Can I see this LED display running before I order?
Yes. We send a video of the exact cabinet type under a white and a grey test pattern, plus a phone camera pan, so you can judge scan lines and uniformity before the deposit.
What does the 3-year warranty cover?
LED modules, drivers, receiving cards and cabinet hardware, with free replacement of failed units in the first 3 years and chargeable spares held for five.
Can you put our brand on the P2 Indoor LED Display Screen?
OEM is available from 20 m²: cabinet badge, carton print and manual, plus a firmware splash screen if you want the wall to show your brand at boot.
Will this P2 Indoor LED Display Screen survive a coastal or high-humidity site?
The cabinet is IP34 with a breathable pressure valve, and for coastal projects we add an anti-corrosion coating plus stainless fixings. Wash the front with a soft brush and deionised water every 6-12 months to keep salt off the mask.
Request a price for the P2 Indoor LED Display Screen
Send the screen size, viewing distance and project country, and our engineers return a layout drawing, a resolution map and a factory price within 24 hours. Similar models are listed under Indoor Full Color LED Display range, and you can compare p4 indoor rental led screen, indoor smd led screen. Direct contact goes through the contact page. When you compare quotations, ask every supplier for the module brand, the power-supply brand and the spare ratio in the carton – that is where prices usually differ.
