New design P10 led panel Full color billboard outdoor fixed screen led advertising display

Product Details:
Place of Origin: CHINA
Brand Name: Vios
Certification: CE RoHS FCC CCC TUV UL
Model Number: SMD-P10
Payment & Shipping Terms:
Minimum Order Quantity: 12 SQM
Price: USD 550-750 square meter
Packaging Details: wooden case, flight case
Delivery Time: 5-13working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3500 sqm month

Product description

Application: Outdoor, Outdoor Color:: Full Color, Full-color
Panel Size:: 960*960mm Brightness:: 5500cd/sqm
Module Size:: 320*160mm Life Span:: 100000hours
Product Name:: P10 Led Display Module Module Resultion:: 32*16 Dots
High Light: full color led signs outdoor, outdoor full color led screen

  Vios LED P10 outdoor fixed advertising full color 960*960mm cabinet outdoor led screen led display

1. The first level LED chip from Taiwan Epistar

2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly

Main Features of P10 outdoor led sceen

1) More than 6500cd/m² brightness, Be seen clearly even with strong sunshine

2) 100% Full waterproof, no worry about woring in rainy day
3) Support almost all format of video files, images ect.
4) 3 years warranty and life time maintance

♦ Product specification

outdoor SMD P10
Lamp size 3535
Resolution/mm 10
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 10000/m²
Module resolution 32×16
Module size/mm 320×160
View distance ≥10m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


♦ Packaging and shipping

Wooden case or flight case package are available.

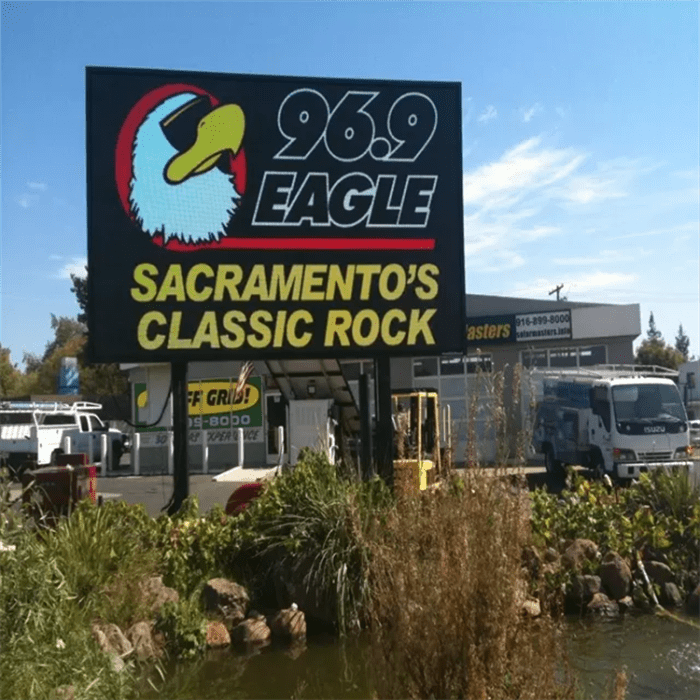

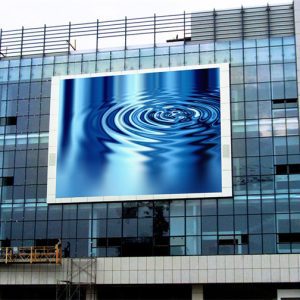

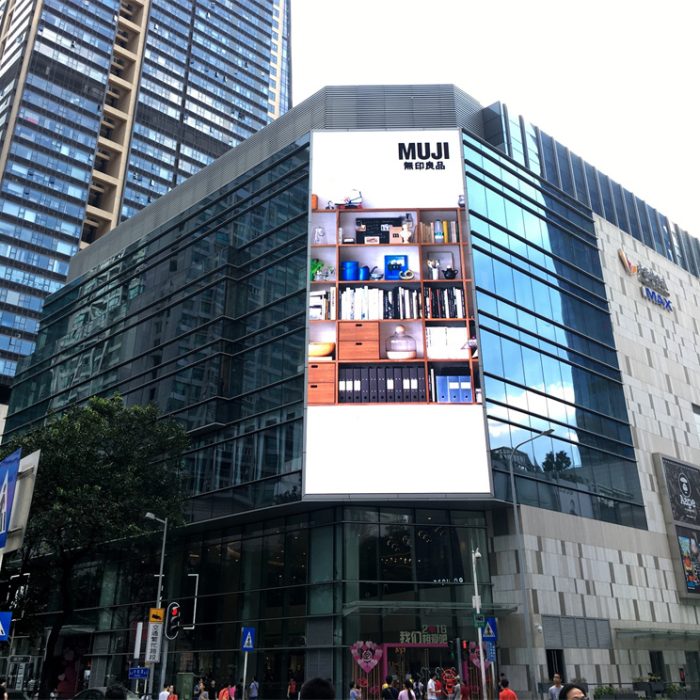

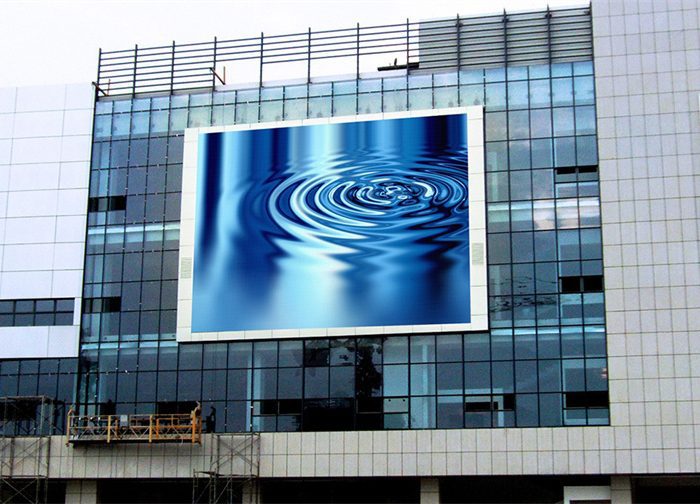

Our case

P10 P8 Full Color Advertising Billboard PanelP10 P8 Full Color Advertising Billboard Panel

Why choose us

1) Well-experienced
A) our factory specialized in this industry for 11 years, and i worked in this industry for 5 years.
B) we have much experience and many cases in this industry abroad.

2) No after sale worries.
a) we provide full process technical support for installation guidance and debugging etc service.
b) 5 years warranty and lifetime maintenance service.
c) send our engineer for onsite guidance based on your requirments

3) Save your time and energy.
A) Complete solution
B) Consider and solve potential issues before you realized.
C) Respond to you immediately for all your questions
D) full process of follow up and feedback to you the status of your order.

4) Save shipping cost for you.
We have some well cooperated shipping agents for Sea shipping; Air shipping and Express. they
could give their most competitive price.

5) Almost all your questions we have already experienced and well solved, So for all your issues, we could provide professional solutions.

6) You will get one more partner or friend. In our mind, you are more than a client.


Q1:How could I buy the products I need if there is no price in the website?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.

Q2:How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What kind of warranty do you offer?
A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty.
Q4:How is the after sales service?
A: We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q5:What kind of payment methods do you have as a manufacturer?
A: We take T/T , Western union, L/C and cash as payment terms.
Q6:How long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 10-15working days after we get your payment.
Q7: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
