Sized for roadside and rooftop advertising, this P4 Indoor LED Billboard uses Kinglight LEDs at P4 inside a 960×960 mm die-cast aluminium cabinet, sealed to IP65 and calibrated to 3,000 cd/m². Leyarled has shipped this cabinet family since 2013 with a 3-year warranty and a 2-3% spare-module allowance in each case.
P4 Indoor LED Billboard: key features
- 18 modules per cabinet, 320×160 mm each – spares are interchangeable across the whole cabinet family.
- Front-service magnetic modules – a dead module is swapped from the front in minutes, no cabinet removal.
- 1920-3840 Hz refresh rate – no scan lines when a phone or broadcast camera pans across the screen.
- About 33.2 kg per cabinet, 298 W/m² average draw – a 3.84×2.88 m wall weighs roughly 367 kg and pulls 3,300 W.
P4 Indoor LED Billboard technical specification
| Parameter | Value |
|---|---|
| Pixel pitch | P4 (4 mm) |
| Module size | 320×160 mm |
| Module count | 18 per cabinet |
| Cabinet size | 960×960 mm |
| Resolution per cabinet | 240×240 px (57,600) |
| Brightness | 3,000 cd/m² (auto dimming) |
| Refresh rate | 1920-3840 Hz |
| Scan mode | constant current, high scan |
| Protection | IP65 |
| LED lamp | Kinglight |
| Cabinet material | die-cast aluminium |
| Cabinet weight | about 33.2 kg (36 kg/m²) |
| Average power | about 298 W/m² |
| Viewing distance | 6 m minimum, 12 m comfortable |
| Lifespan | 100,000 hours |
| Warranty | 3 years |
The table shows the standard build for this P4 Indoor LED Billboard. Cabinet size, brightness and control system can be changed per project; the final datasheet is issued with the PI before production. Cabinets are tested against IEC 60068 for temperature, humidity and vibration.
How the numbers work on a real wall
To size this P4 Indoor LED Billboard, start from whole cabinets: a 4×3 build gives a 3.84×2.88 m screen, 960×720 pixels (0.69 MP), about 367 kg of cabinet and an average load near 3,300 W. Add one row and the same cabinet family gives 3.84 m height with no new tooling, which is why projects usually fix the wall size first and the pitch second.
Product details
We build our displays with the environment in mind. Created from 50% reclaimed material and 100% recyclable themselves, our displays are energy-efficient, using the same amount of power as the hairdryer you have at home.

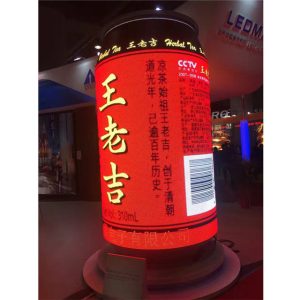

The human eye is naturally drawn to things out of the ordinary, and an LED display wrapped around a column is just that. Get your ads, information, and brand noticed with a unique HeroWrap display.
Where the P4 Indoor LED Billboard is used
- Rooftop media – steel-frame structures for city-centre rooftops.
- Shopping mall facades – DOOH screens facing pedestrian traffic.
- Fuel stations and drive-throughs – small-format boards with remote content scheduling.
- Roadside advertising – high-brightness boards read from 80-150 m at speed.
Installation and service access
Billboards are engineered as a steel structure: the cabinet array is fixed to a hot-dip galvanised frame and the control cabinet sits in a weatherproof enclosure at the base. We provide the structure drawing, wind-load notes and the power distribution plan.
Automatic brightness sensors are included so the screen dims at night and stays within local light-pollution rules. 3-year warranty on modules, power supplies and receiving cards; spare parts held in Shenzhen for five years after the order.
P4 Indoor LED Billboard: frequently asked questions
Can I see this LED display running before I order?
Yes. We send a video of the exact cabinet type under a white and a grey test pattern, plus a phone camera pan, so you can judge scan lines and uniformity before the deposit.
What does the 3-year warranty cover?
Modules, power supplies, receiving cards and the cabinet structure. Wear parts such as fan filters are excluded, and spare parts stay available in Shenzhen for five years after the order.
Can you put our brand on the P4 Indoor LED Billboard?
Silkscreen on the 960×960 mm cabinet, a branded carton and a custom manual are included from 50 m²; below that we print labels only, so the MOQ stays at one square metre.
Will this P4 Indoor LED Billboard survive a coastal or high-humidity site?
Yes, with the coastal option: epoxy coating on the cabinet, stainless screws, conformal-coated driver boards. Humidity above 85% year-round is the case where that option pays for itself.
Request a price for the P4 Indoor LED Billboard
Send the screen size, viewing distance and project country, and our engineers return a layout drawing, a resolution map and a factory price within 24 hours. Similar models are listed under Fixed LED Display range, and you can compare p4 indoor led dance floor, p2.5 indoor led display screen. Direct contact goes through the contact page. When you compare quotations, ask every supplier for the module brand, the power-supply brand and the spare ratio in the carton – that is where prices usually differ.
