Full Color 64*32 Dots Resolution Constant Driving Hd Indoor Ball Sphere LED Screen

Product Details:

Place of Origin:
China
Brand Name:
Vioa
Certification:
CE/ROHS/FCC/ISO/UL
Model Number:
P4

    Vios Hd Indoor Ball Spherical Full Color Ball Led Display

    Payment & Shipping Terms:

    Minimum Order Quantity:
    negotiation
    Price:
    negotiation
    Packaging Details:
    flight case, wooden case, carton, it is up to you.
    Delivery Time:
    7-10 working days after receive your payment
    Payment Terms:
    T/T or western Union
    Supply Ability:
    5000sqm per month

    Detailed Product Description

    Product Name:
    P4 Led Display
    Module Size(W * H):
    256mm*128mm Flexible Module
    Standard:
    CE/ROHS/FCC/ISO2001
    Tube Chip Color:
    Full Color
    Pixel Pitch:
    4mm
    Resolution(W*H):
    64dots*32dots
    Application:
    Shopping Mall/Event
    Function:
    Display Video
    High Light:
    sphere led display
    , full color led screen
    High Technology Led Display Hd Indoor Ball Spherical Full Color Ball Led Display
    Welcome to Shenzhen Vios  Electronic Co.,Ltd.we are  the most professional provider of outdoor and indoor led displays with 21 years experience,
    we have the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.with the perfect global marketing network,
    our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.
    As always do,Vios will continue to spare no efforts in reinforcing its position as a product, technology and market. we always contribute our efforts to help our customers improve visual effect and fulfill its social responsibilities.

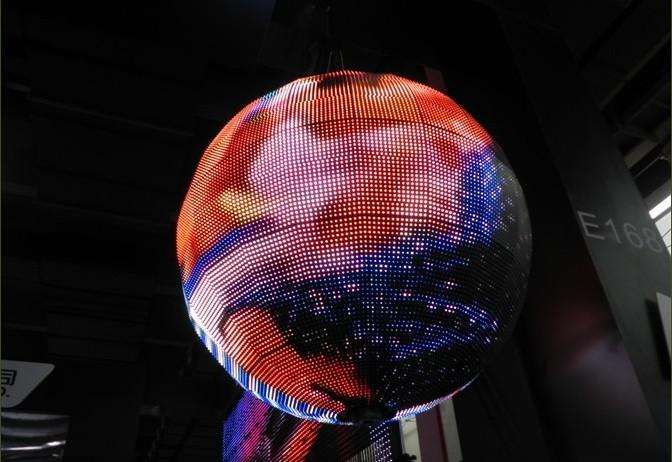

    the led ball is made by 5 shapes indoor p4 soft module,1.2m diameter spherical steel structure and mooncell control card.this type point density:62500dots/sqm.



    Resolution/mm
    4
    Pixel configuration
    1R1G1B
    Pixel density/pixels/m²
    62500/m²
    Module resolution
    64×32
    Module size/mm
    256x128mm and other
    View distance
    4-150m
    Single point brightness adjust
    Can be added
    Single point color adjust
    Can be added
    White balance brightness
    2500 cd/㎡
    Color temperature
    6500K-9500K
    Horizontal view angle
    120(degrees)
    Vertical view angle
    60(degrees)
    Signal Process bit
    10 or 16bit
    Grey process
    1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances
    Internet cable:100m, multimembrane:500m, monofilm:2km
    Driving mode
    Constant driving current
    Scanning mode
    (1/16 scan)
    Frame rate
    60Hz
    Refresh frequency
    >3000Hz
    Control mode
    Computer synchronous
    Brightness adjusted range
    Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point
    <1/10000
    Working hours
    ≥72hours
    Mean Time Between Failure
    >10000hours
    Life time
    100000hours
    Life-all-white(brightness halving)
    100000hours
    Environment temperature range
    Operating temperature range: -20-45℃
    Maximum power:/㎡
    <700W
    Average power:/㎡
    <200W
    Self-check technology
    LED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoring
    Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environment
    WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres
    Deviation<3%
    Brightness uniformity
    <10%
    Color uniformity(chromaticity coordinate)
    ±0.003
    Power supply request
    AC85-264V(50Hz-60Hz)
    Contrast
    (1000:1)
    System protection
    Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)
    working:10-95%
    Humidity(storing)
    storing:10-95%
    Hd Indoor Ball Sphere LED Screen Full Color 64*32 Dots Resolution Constant Driving 0

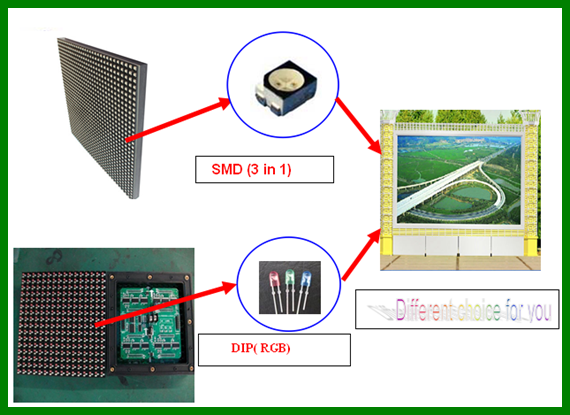

    The epistar Led chip. with SMD and DIP Technology .
    we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available

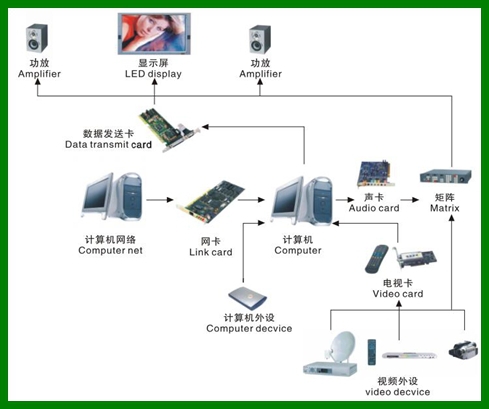

    The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
    Factory Equipment
    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
    Competitive Advantage:
    1. 5 years’ warranty with free repair service
    2. 24/7 Hours online Remote Support
    3. Solution and PCB design
    4. Free factory training
    5. On site installation instruction and regular inspection
    6, Small order accepted.
