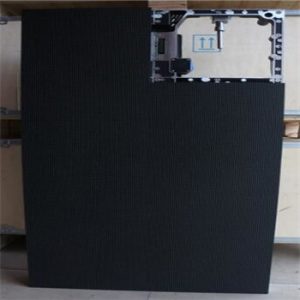

Event Stage Front Service LED Display Rental With Aluminum 500mm Cabinet

Event Stage Front Service LED Display Rental With Aluminum 500mm Cabinet

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vios
Certification: CCC, CE, ROHS FC
Model Number: P3.91

Product Detail

Sized for stage and event builds, this LED Cabinet uses Kinglight LEDs at P3.91 inside a 500×500 mm die-casting aluminum cabinet, sealed to IP63 and calibrated to 1,000 cd/m². Leyarled has shipped this cabinet family since 2013 with a 3-year warranty and a 2-3% spare-module allowance in each case.

LED Cabinet 500x500mm rental LED cabinet - Leyarled

LED Cabinet: key features

  • 3840 Hz refresh rate – no scan lines when a phone or broadcast camera pans across the screen.
  • About 5.2 kg per cabinet, 227 W/m² average draw – a 2.0×1.5 m wall weighs roughly 16 kg and pulls 700 W.
  • Kinglight LEDs on a die-casting aluminum cabinet – both parts are held as spares in Shenzhen for five years after the order.
  • Factory calibration before packing – brightness and colour bins are matched across cabinets so a 40 m² wall reads as one surface.

LED Cabinet technical specification

Parameter Value
Pixel pitch P3.91 (3.91 mm)
Module size 320×160 mm
Module count 5 per cabinet
Cabinet size 500×500 mm
Resolution per cabinet 128×128 px (16,384)
Brightness 1,000 cd/m² (auto dimming)
Refresh rate 3840 Hz
Scan mode constant current, high scan
Protection IP63
LED lamp Kinglight
Cabinet material die-casting aluminum
Cabinet weight about 5.2 kg (21 kg/m²)
Average power about 227 W/m²
Viewing distance 5.9 m minimum, 12 m comfortable
Lifespan 100,000 hours
Warranty 3 years

The table shows the standard build for this LED Cabinet. Cabinet size, brightness and control system can be changed per project; the final datasheet is issued with the PI before production. Cabinets are tested against IEC 60068 for temperature, humidity and vibration.

How the numbers work on a real wall

The arithmetic behind this LED Cabinet is simple enough to check before you order: 500÷3.91 = 128 pixels across each cabinet and 500÷3.91 = 128 down, so six cabinets in a row resolve 768 pixels at 3.0 m wide. Viewing distance follows the pitch – 5.9 m before the pixel structure disappears, 12 m before body copy reads cleanly. Because the cabinet divides into 5 standard 320×160 mm modules, a replacement module is never a custom order.

Product details

Multi rib structure design, to ensure that the product is not easy to tensile deformation, to ensure the integrity of the screen and the consistency of the overall.

Vios LED Slim Rental Series provide an excellent solution to rental client due to its lightweight and slim shape.Fast and simple setup not only saves installation time but also labor cost saving,

LED Cabinet 500x500mm rental LED cabinet - Leyarled

Where the LED Cabinet is used

  • Houses of worship – semi-permanent walls on a rental frame.
  • Broadcast sets – modular backdrops that change per show.
  • Touring and rental companies – stock cabinets that rebuild into any stage size.
  • Event production – quick-build walls for conferences and launches.

Installation and service access

Rental cabinets use quick-lock latches and a curved-lock option, so the same stock builds flat walls or 5-degree curves. Flight cases hold eight to twelve cabinets and are quoted with the order.

Curving, hanging and stacking all use the same cabinet, which keeps rental inventory simple. 3-year warranty on modules, power supplies and receiving cards; spare parts held in Shenzhen for five years after the order.

LED Cabinet: frequently asked questions

Can you put our brand on the LED Cabinet?

OEM is available from 20 m²: cabinet badge, carton print and manual, plus a firmware splash screen if you want the wall to show your brand at boot.

Will this LED Cabinet survive a coastal or high-humidity site?

Yes, with the coastal option: epoxy coating on the cabinet, stainless screws, conformal-coated driver boards. Humidity above 85% year-round is the case where that option pays for itself.

What is the lead time for a LED Cabinet order?

7-12 working days for standard P3.91 cabinets, 15-20 days if the order includes steel structure and on-site commissioning. Sea freight to most ports adds 18-35 days depending on the route.

How many spare modules should I keep?

2-3% of the total module count, minimum two. For this cabinet that means one spare per 40 cabinets, or a full spare cabinet for a wall under 20 m².

Request a price for the LED Cabinet

Send the screen size, viewing distance and project country, and our engineers return a layout drawing, a resolution map and a factory price within 24 hours. Similar models are listed under LED Cabinet range, and you can compare p3.91 outdoor led cabinet, p6.67 outdoor led cabinet. Direct contact goes through the contact page. When you compare quotations, ask every supplier for the module brand, the power-supply brand and the spare ratio in the carton – that is where prices usually differ.
